Electric car charging station AK-EC-21 Wallbox Type2 3-phases 16A 11kW 5m
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | AK-EC-21 |
| Responsible organisation | Akyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, contact@akyga.com |
| Product type | Electric vehicle accessory |
| Supply voltage | 380-440 V / 50/60 Hz |
| Number of phases | 3-phase |
| Maximum current | 16 A |
| Maximum power | 11 kW |
| Grounding | Yes |
| Flame retardant | UL94V-0 |
| IP rating | IP54 |
| OVP | Yes |
| OCP | Yes |
| OPP | Yes |
| OTP | Yes |
| SCP | Yes |

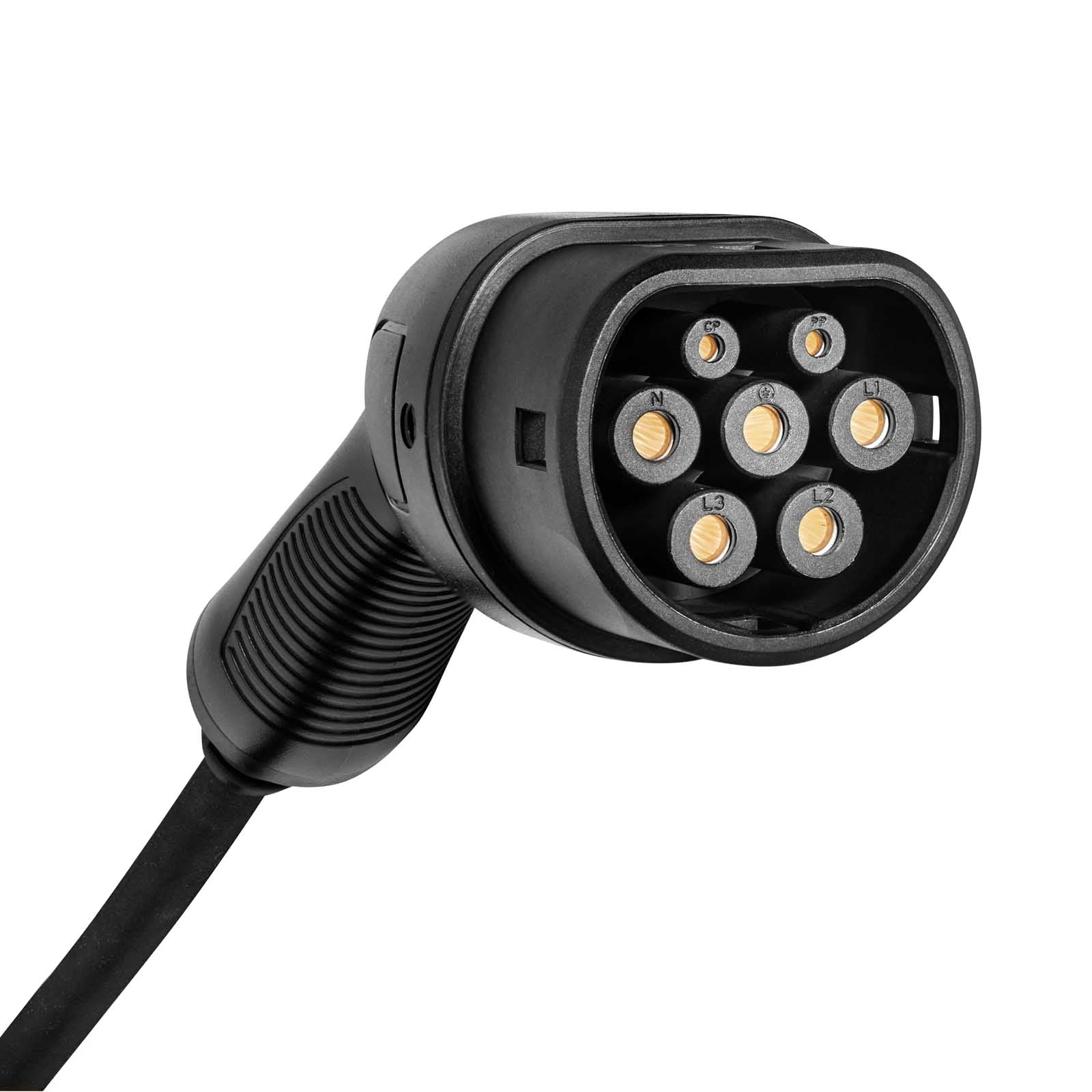

| Power connector | Type 2 (IEC 62196-2) female connector |
| Cable length | 5 m + 0.75 m |
| Cable material | Copper |
| Material | ABS |
| Product colour | White |
13 more technical details
| MTBF | 10000 h |
| Temperature | -35 / +50 °C |
| Packaging | Cardboard box |
| Product size (L x W x H) | 90 x 180 x 180 mm |
| Package size (L x W x H) | 235 x 275 x 405 mm |
| Net weight | 3180 g |
| Gross weight | 3975 g |
| CE compliance | Yes |
| FCC compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720139474 |
| Warranty | 24 months |
Description

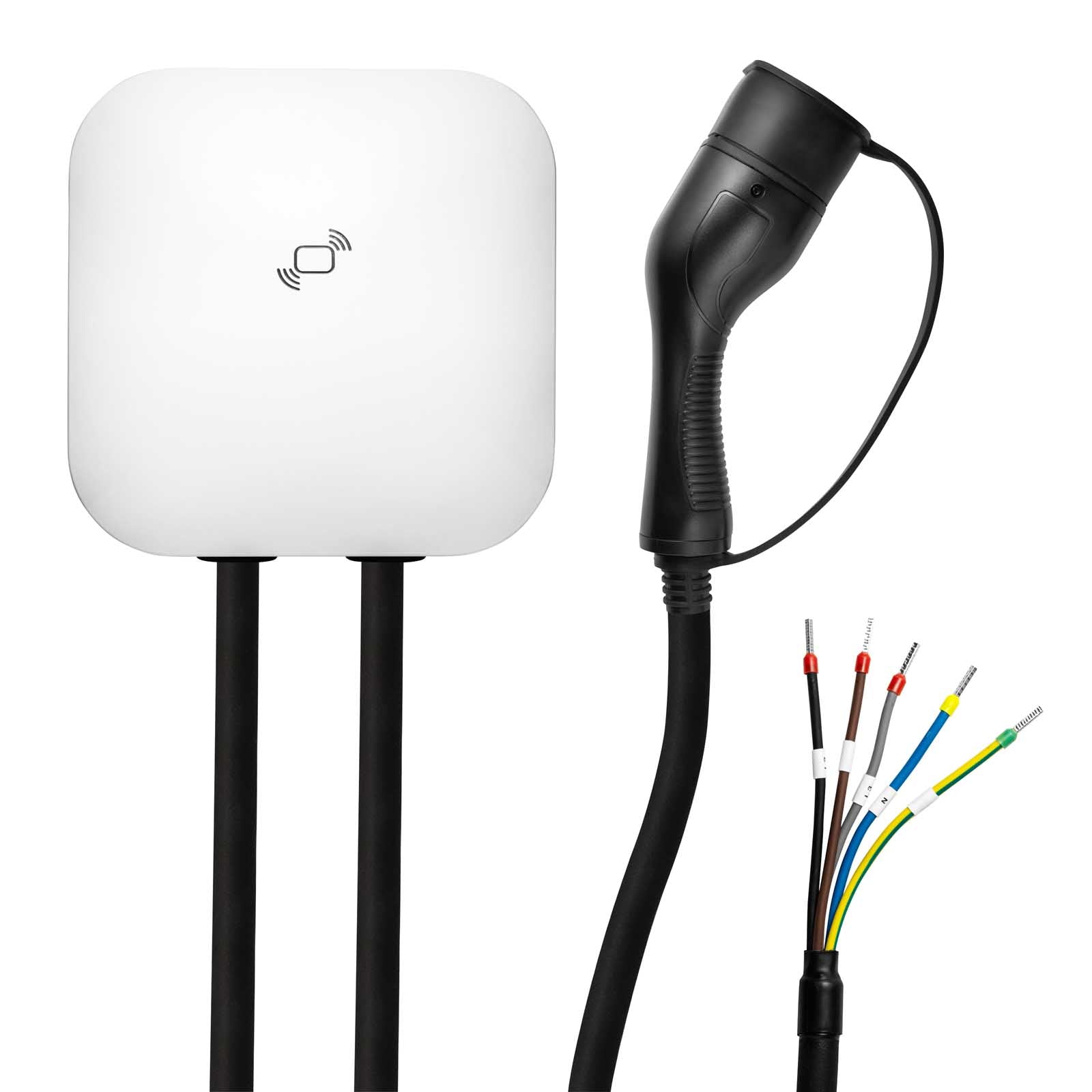

The Akyga® AK-EC-21 electric car charging station is a device that allows for fast charging using three-phase current. The built-in Type 2 connector (IEC 62196-2) enables a maximum current of 16 A, which means up to 11 kW of charging power. This charging station, also known as a Wallbox, is compatible with a wide range of electric vehicles, ensuring flexibility and convenience.

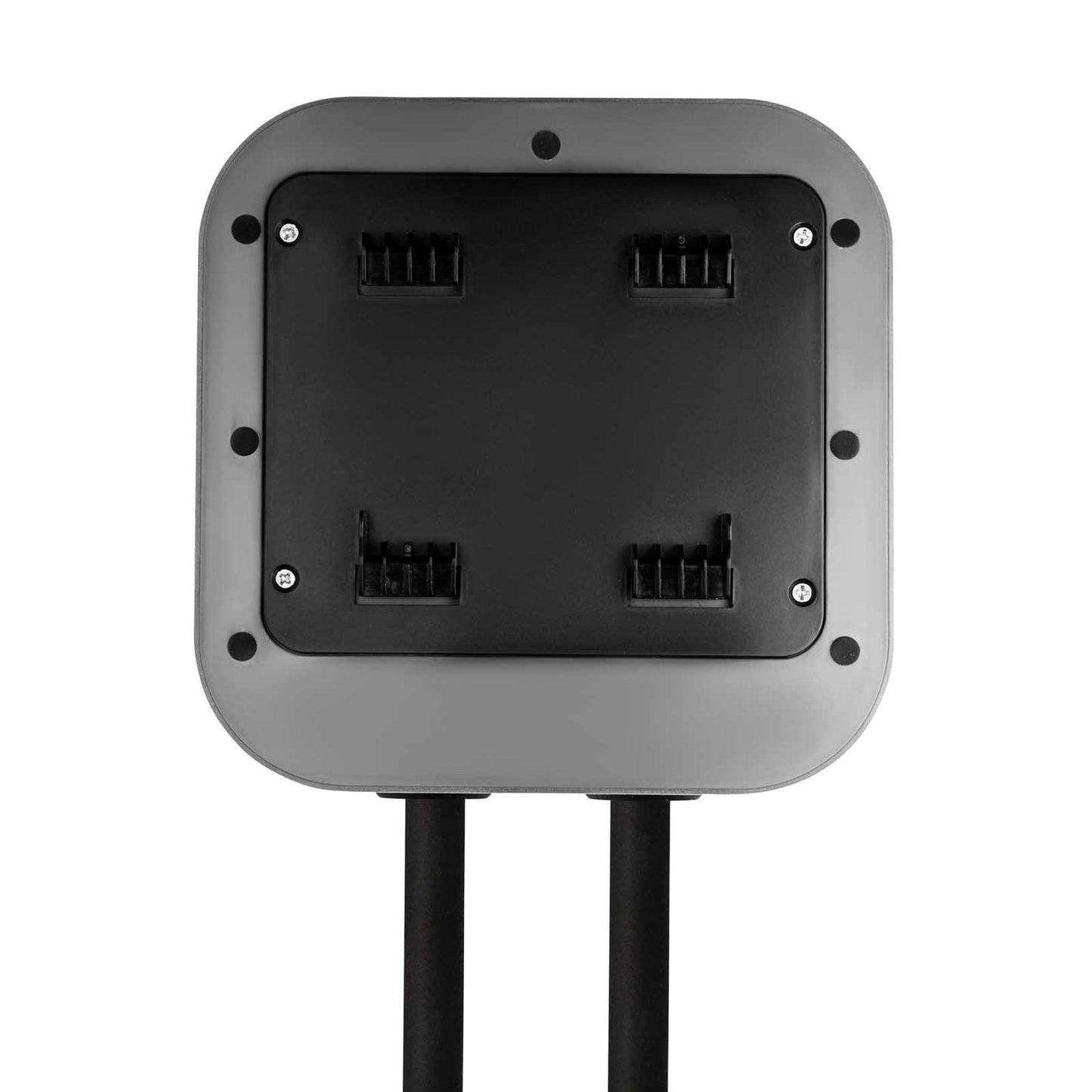

With maximum user comfort in mind, the charging station is equipped with a 5-meter cable, providing great freedom during charging and allowing the vehicle to be positioned at an appropriate distance from the station. It comes with two RFID cards, which guarantee secure use by controlling access to the charger. The Wallbox also offers a practical wall-mount bracket, making the device easy to install and space-saving.
The AK-EC-21 electric car charging station has specially prepared cables for connecting to the electrical installation, which facilitates the installation and quick commissioning of the charging station. What's more, the Wallbox is an ideal choice for those looking for an efficient and easy-to-use solution for charging electric cars at home.
