Specifications
| Termékkód | EN2010-6-F |
| Terméktípus | EMI szűrő |
| Szűrő típusa | Anti-interferencia |
| Maximális működásbeli áramerősség | 6 A |
| Csatlakozók | 6,3 mm priključci |
| Szivárgási áramerősség | 0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz |
| Pólusok száma | 2 |
| Anyag | Fém |
| Hőmérséklet | -25`C - +100`C |
| Termék mérete (H x SZ x M) | 61 x 56 x 22 mm |
| CE megfelelőség | Igen |
| RoHS megfelelőség | Igen |
| REACH megfelelőség | Igen |
| EAN kód | 5901720138439 |
Specifications are provided by the manufacturer; images are for illustration only.
Description

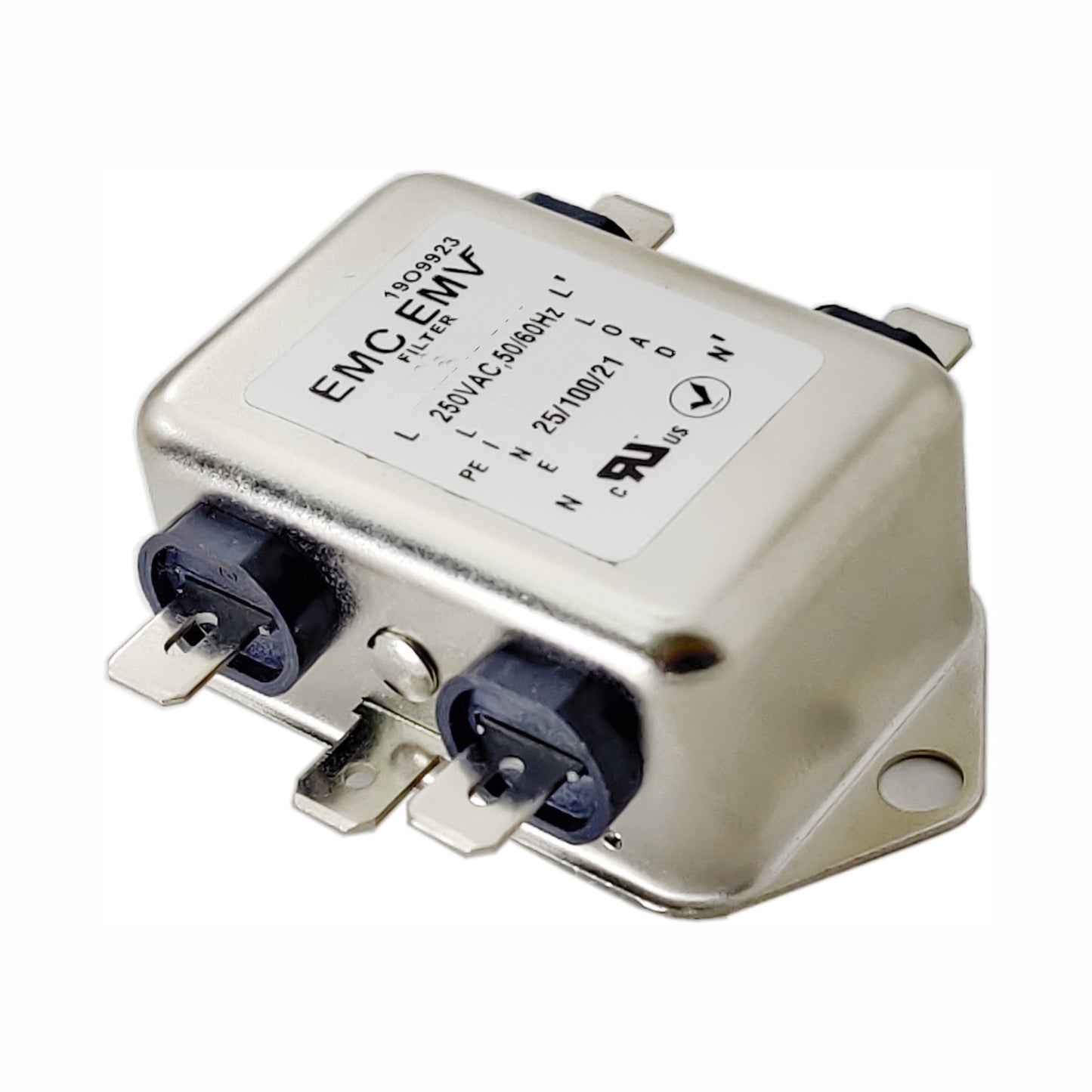

The EN2010-6-F EMI filter is a compact and reliable interference suppression solution designed for operation with currents up to 6 A. Thanks to its two-pole design, it effectively suppresses electromagnetic interference in the 120-250 V range, protecting sensitive electronic systems from unwanted network signals.
The metal housing provides durability and effective shielding, while the 6.3 mm connectors allow for quick installation. With compact dimensions of 61 x 56 x 22 mm, the filter easily fits into limited installation spaces. With a leakage current of 0.43 mA at 120 V and 0.74 mA at 250 V, the EN2010-6-F is an excellent choice for applications requiring precise filtering while ensuring stable operation.
