Akyga

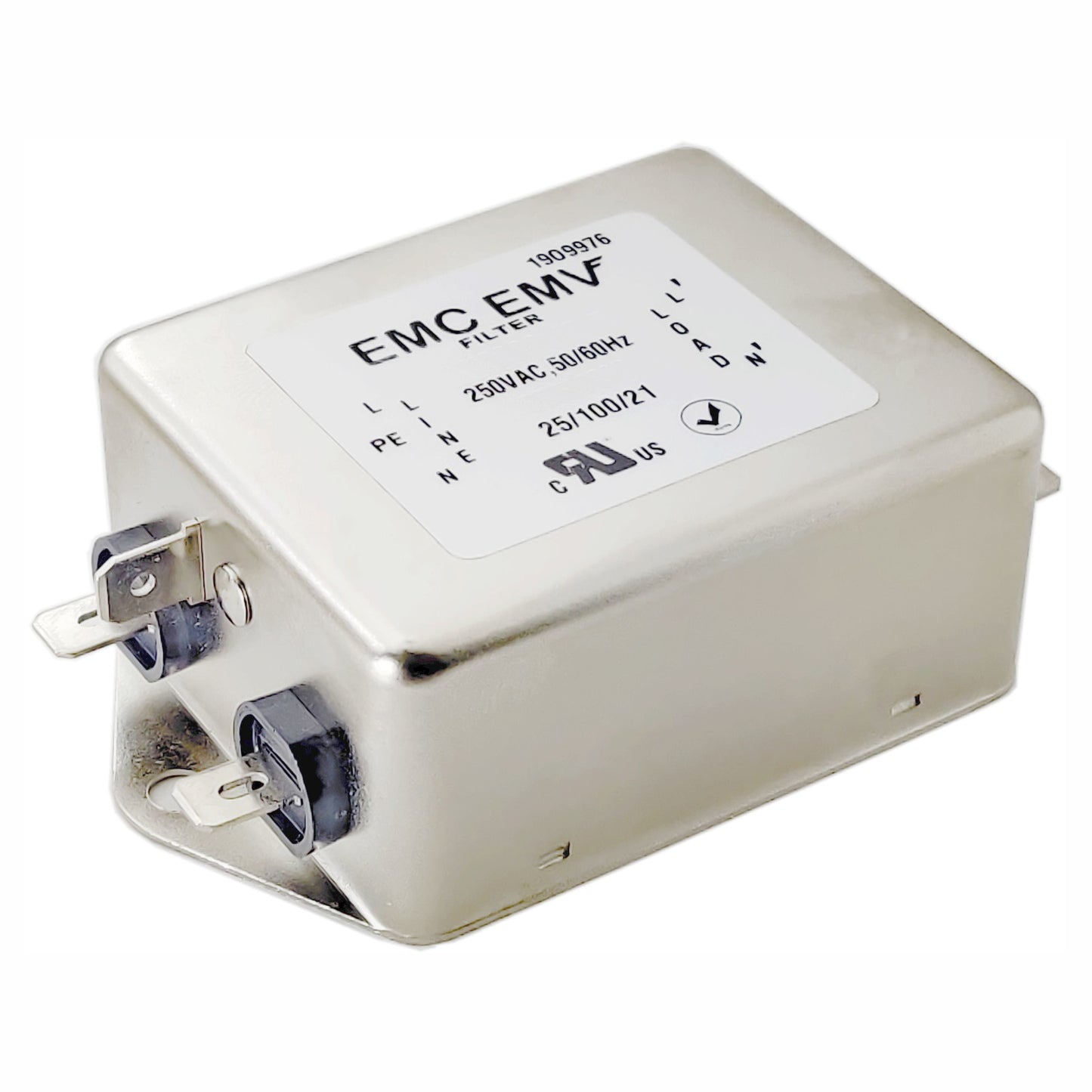

EMI suppression filter EN2060-3-F 3A
5.710 Ft
gross price
Supplier stock · approx. 1-2 weeks
Item number: EN2060-3-F
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | EN2060-3-F |
| Product type | EMI filter |
| Filter type | Anti-interference |
| Maximum operating current | 3 A |
| Connectors | 6,3 mm priključci |
| Leakage current | 0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz |
| Number of poles | 2 |
| Material | Metal |
| Temperature | -25`C - +100`C |
| Product size (L x W x H) | 73 x 45 x 29 mm |
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720138705 |
0 more technical details
The data shown comes from the manufacturer; illustrations may differ.
Description
The EN2060-3-F EMI filter is a compact and effective solution for protecting electronic equipment against electromagnetic interference. Rated for up to 3 A, it is ideal for automation systems, measuring instruments, medical devices, and office equipment where power supply stability and cleanliness are essential for reliable operation.
Thanks to its 6.3 mm connectors, the filter's installation is quick and convenient, while the robust metal housing provides effective interference shielding and resistance to harsh environmental conditions. The EN2060-3-F interference filter is a reliable choice where the protection of sensitive circuits and the smooth operation of the entire system are important.
