Akyga

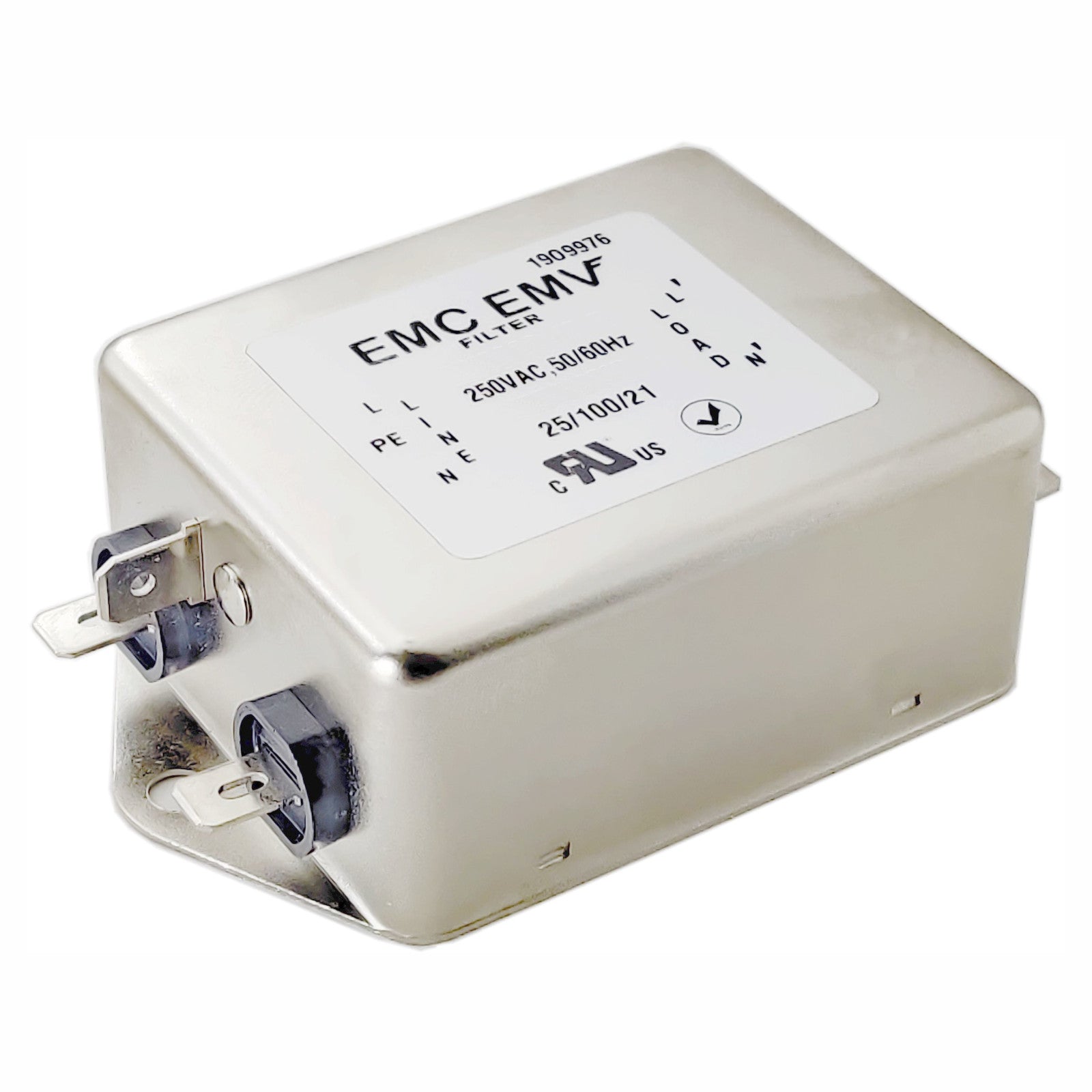

EMI suppression filter EN2070-1-F 1A
7.550 Ft
gross price
Supplier stock · approx. 1-2 weeks
Item number: EN2070-1-F
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | EN2070-1-F |
| Product type | EMI filter |
| Filter type | Anti-interference |
| Maximum operating current | 1 A |
| Connectors | 6,3 mm priključci |
| Leakage current | 0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz |
| Number of poles | 2 |
| Material | Metal |
| Temperature | -25`C - +100`C |
| Product size (L x W x H) | 86 x 52 x 29 mm |
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720138781 |
0 more technical details
The data shown comes from the manufacturer; illustrations may differ.
Description
The EN2070-1-F EMI filter is a compact and effective solution for protecting sensitive electronic systems from electromagnetic interference. With a maximum operating current of 1 A, it is ideally suited for use in measuring equipment, control systems, laboratory equipment, and anywhere where accuracy and performance stability are important.
Thanks to its 6.3 mm connectors, the filter is easy to install, while its metal housing guarantees effective interference shielding and resistance to external influences. The EN2070-1-F interference filter provides reliable protection in a compact form - designed for electronics requiring exceptional accuracy.
