Akyga

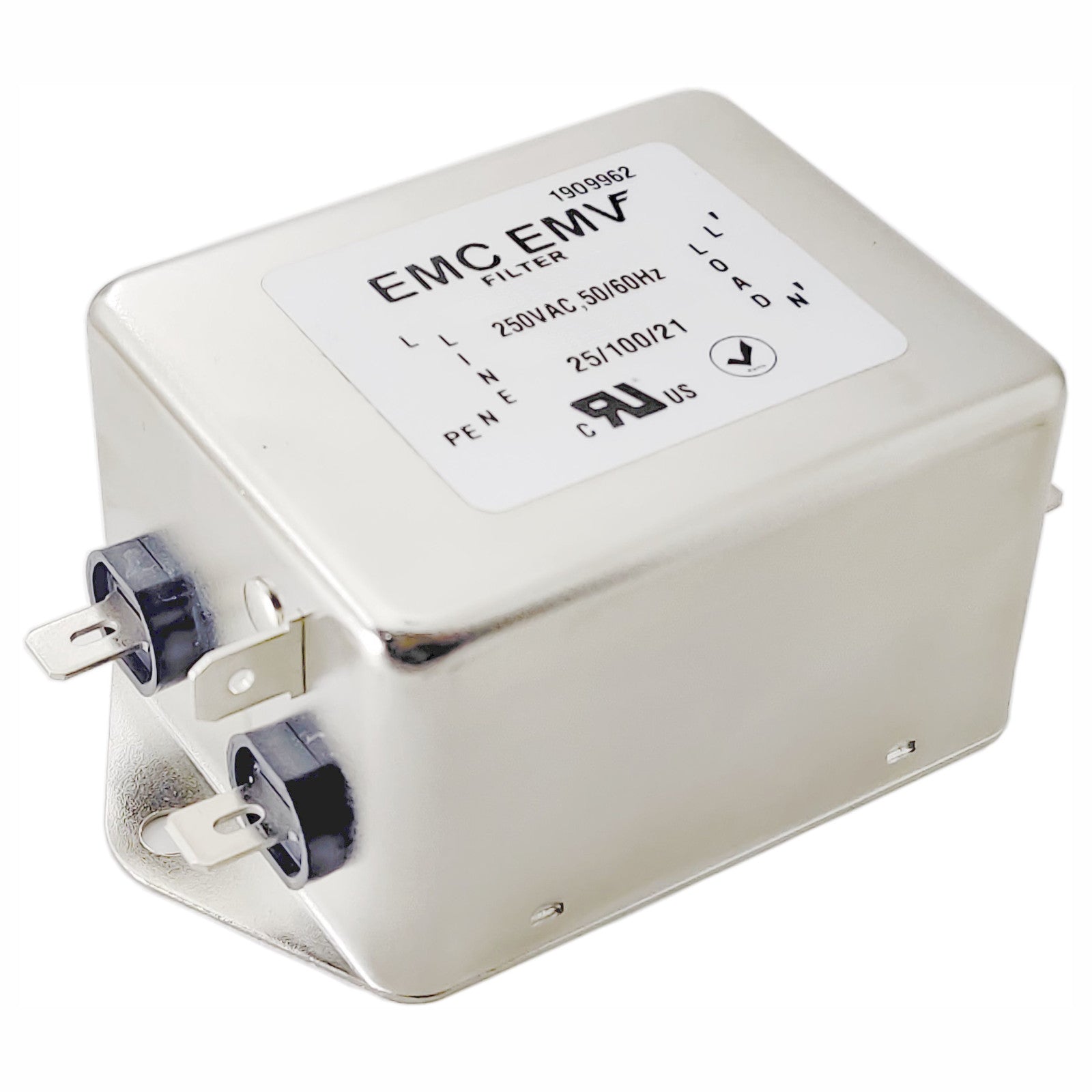

EMI suppression filter EN2070-10-F 10A
13.650 Ft
gross price
Supplier stock · approx. 1-2 weeks
Item number: EN2070-10-F
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | EN2070-10-F |
| Product type | EMI filter |
| Filter type | Anti-interference |
| Maximum operating current | 10 A |
| Connectors | 6,3 mm priključci |
| Leakage current | 0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz |
| Number of poles | 2 |
| Material | Metal |
| Temperature | -25`C - +100`C |
| Product size (L x W x H) | 155 x 57 x 45 mm |
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720138811 |
0 more technical details
The data shown comes from the manufacturer; illustrations may differ.
Description
The EN2070-10-F EMI filter is a reliable solution designed to protect electronic devices from electromagnetic interference when operating at voltages up to 10 A. It is ideal for automation systems, lighting installations, and power systems where voltage stability directly impacts operational reliability.
The 6.3 mm type connectors facilitate quick installation, while the metal housing ensures durability and effective shielding from external interference. The EN2070-10-F interference filter combines high filtering efficiency, compact design, and robust construction - an excellent choice for professional and industrial applications.
