Akyga
EMI suppression filter EN2070-36-S 36A
23.530 Ft
gross price
Supplier stock · approx. 1-2 weeks
Item number: EN2070-36-S
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | EN2070-36-S |
| Product type | EMI filter |
| Filter type | Anti-interference |
| Maximum operating current | 36 A |
| Connectors | M4 mm priključci |
| Leakage current | 0.90mA @120 VAC 60 Hz, 1.57mA @250 VAC 50 Hz |
| Number of poles | 2 |
| Material | Metal |
| Temperature | -25`C - +100`C |
| Product size (L x W x H) | 162 x 57 x 45 mm |
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720138866 |
0 more technical details
The data shown comes from the manufacturer; illustrations may differ.
Description

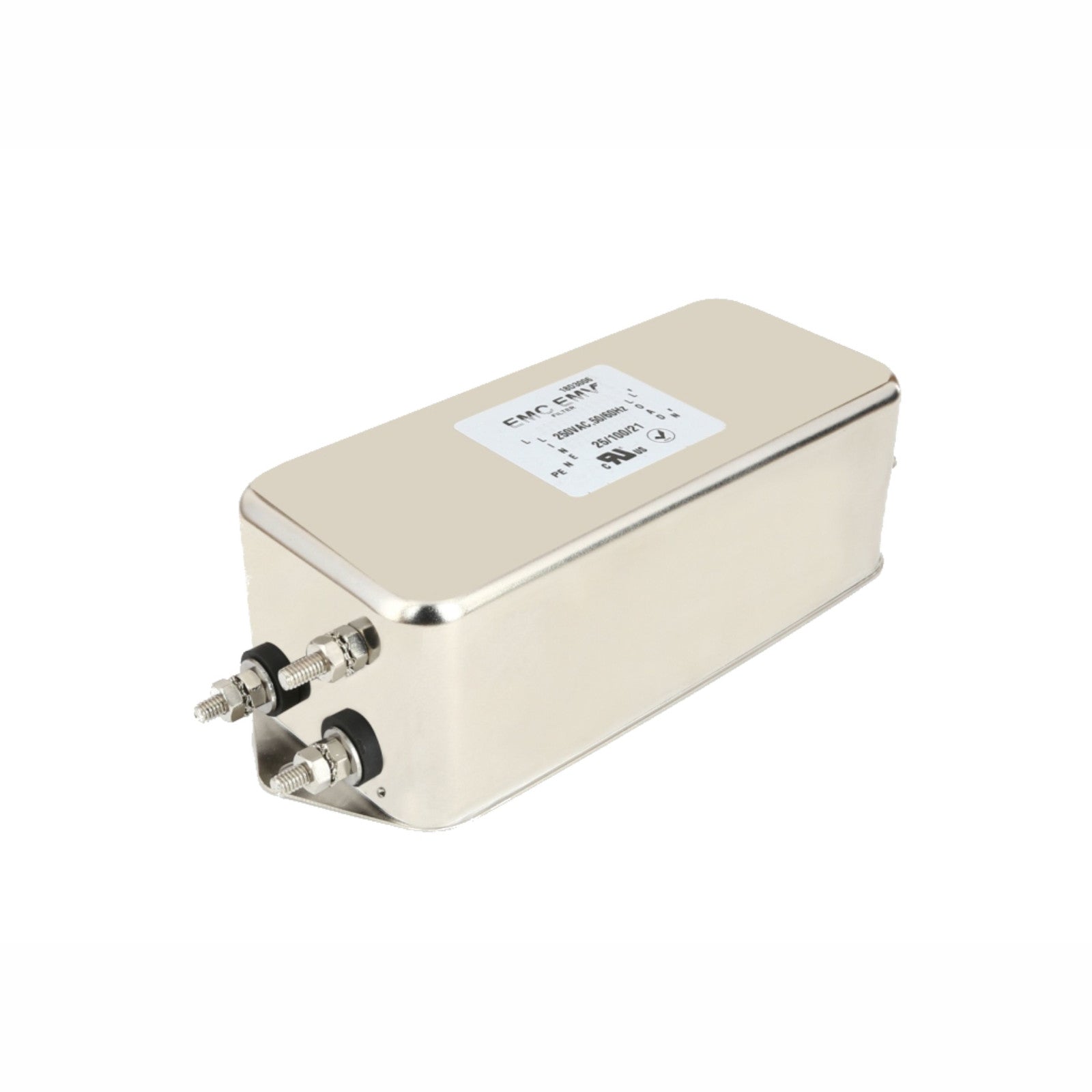

The EN2070-36-S EMI filter is a component designed to protect advanced power systems from electromagnetic interference at high loads, up to 36 A. Its design makes it ideal for industrial control systems, server rooms, high-power power supplies, and equipment requiring uncompromising operational stability.
M4 screw terminals ensure a durable and secure connection, even with larger cross-section cables, while the metal housing guarantees effective interference shielding and resistance to external factors. The EN2070-36-S is an industrial-grade interference filter – designed for use in harsh environments where reliability and continuous operation are critical.
