Akyga

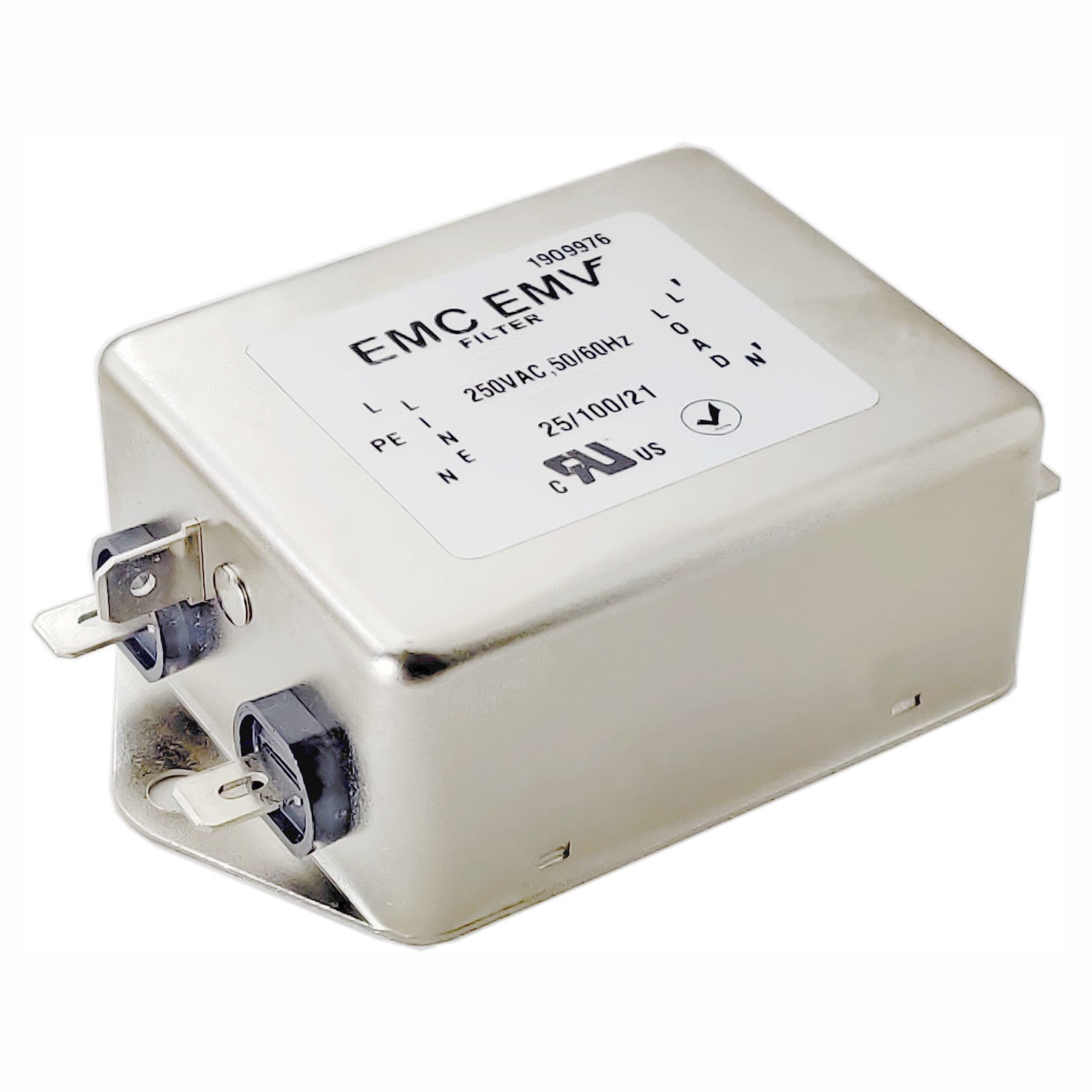

EMI suppression filter EN2080-1-F 1A
7.170 Ft
gross price
Supplier stock · approx. 1-2 weeks
Item number: EN2080-1-F
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | EN2080-1-F |
| Product type | EMI filter |
| Filter type | Anti-interference |
| Maximum operating current | 1 A |
| Connectors | 6,3 mm priključci |
| Leakage current | 0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz |
| Number of poles | 2 |
| Material | Metal |
| Temperature | -25`C - +100`C |
| Product size (L x W x H) | 86 x 52 x 29 mm |
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720138873 |
0 more technical details
The data shown comes from the manufacturer; illustrations may differ.
Description
The EN2080-1-F EMI filter is a compact, high-precision solution designed to protect sensitive electronic systems against electromagnetic interference. With a maximum operating current of 1A, it is ideal for low-current applications such as medical devices, control systems, laboratory apparatus, or measurement equipment.
The pinout, in the form of 6.3mm connectors, allows for quick and convenient installation, while the robust metal housing effectively shields against external interference. The EN2080-1-F EMI filter is a reliable choice wherever high performance quality and protection of sensitive electronics from unwanted interference are important.
