Akyga

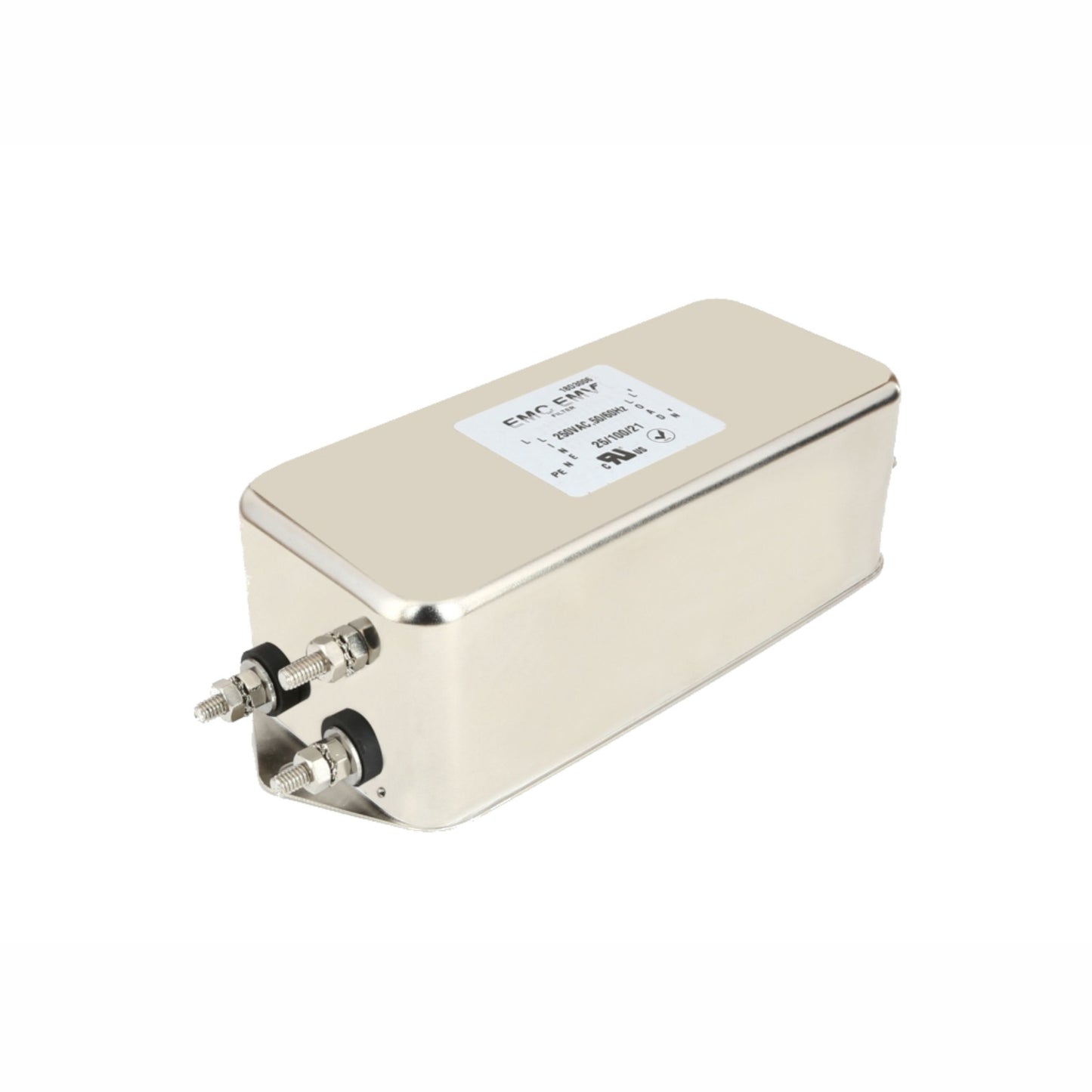

EMI Suppression Filter EN2080-12-S 11A
14.000 Ft
gross price
Supplier stock · approx. 1-2 weeks
Item number: EN2080-12-S
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | EN2080-12-S |
| Product type | EMI filter |
| Filter type | Anti-interference |
| Maximum operating current | 12 A |
| Connectors | M4 mm priključci |
| Leakage current | 0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz |
| Number of poles | 2 |
| Material | Metal |
| Temperature | -25`C - +100`C |
| Product size (L x W x H) | 162 x 57 x 45 mm |
4 more technical details
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720138927 |
The data shown comes from the manufacturer; illustrations may differ.
Description
The EN2080-12-S EMI filter is a solution for systems requiring protection against electromagnetic interference when operating at up to 12 A. With its M4 screw-in wire connections, it ensures a strong, durable connection, ideal for industrial equipment, automation, and demanding power supply applications.
The filter's metal housing effectively protects against external interference and mechanical damage. The EN2080-12-S combines robustness, reliability, and ease of installation, providing excellent protection for equipment operating in various conditions.
