Akyga

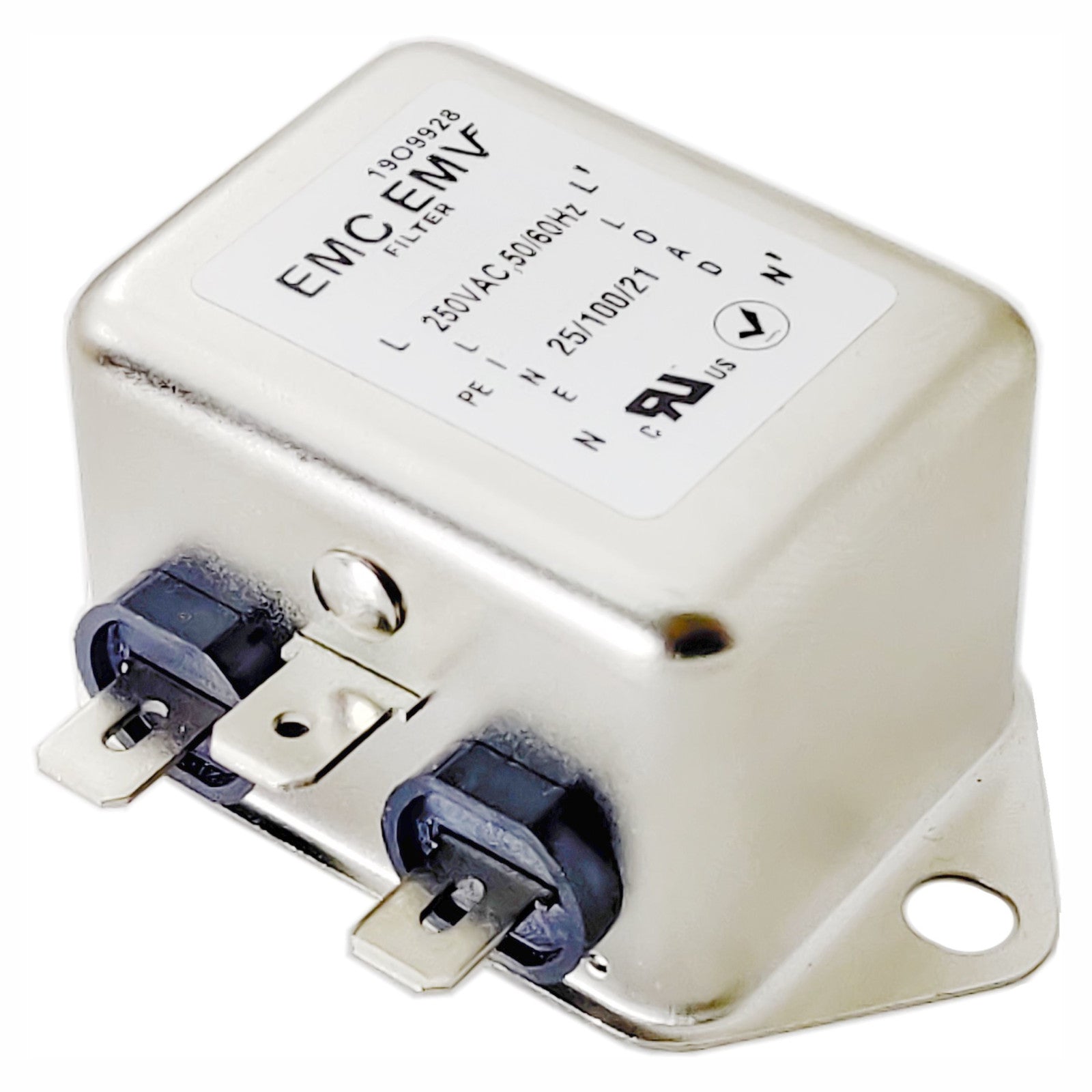

EMI Suppression Filter EN2090-1-F 1A
5.320 Ft
gross price
Supplier stock · approx. 1-2 weeks
Item number: EN2090-1-F
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | EN2090-1-F |
| Product type | EMI filter |
| Filter type | Anti-interference |
| Maximum operating current | 1 A |
| Connectors | 6,3 mm priključci |
| Leakage current | 0.29mA @120 VAC 60 Hz, 0.50mA @250 VAC 50 Hz |
| Number of poles | 2 |
| Material | Metal |
| Temperature | -25`C - +100`C |
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720138958 |
0 more technical details
The data shown comes from the manufacturer; illustrations may differ.
Description
The EN2090-1-F EMI filter is a high-precision interference filter designed to protect sensitive electronics operating at low currents, up to 1 A. It is ideally suited for applications in measuring equipment, medical devices, laboratory equipment, and control systems where even the slightest interference can affect operational accuracy.
Thanks to its low leakage current and robust metal housing, the filter effectively reduces both network-borne and device-generated interference. The connectors allow for quick and easy installation, making the EN2090-1-F interference filter a reliable choice wherever power supply stability and cleanliness are important.
