Akyga
EMI Suppression Filter EN2090-20-F 20A
15.490 Ft
gross price
Supplier stock · approx. 1-2 weeks
Item number: EN2090-20-F
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | EN2090-20-F |
| Product type | EMI filter |
| Filter type | Anti-interference |
| Maximum operating current | 20 A |
| Connectors | 6,3 mm priključci |
| Leakage current | 1.00mA @120 VAC 60 Hz, 1.73mA @250 VAC 50 Hz |
| Number of poles | 2 |
| Material | Metal |
| Temperature | -25`C - +100`C |
| Product size (L x W x H) | 115 x 57 x 45 mm |
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720139023 |
0 more technical details
The data shown comes from the manufacturer; illustrations may differ.
Description

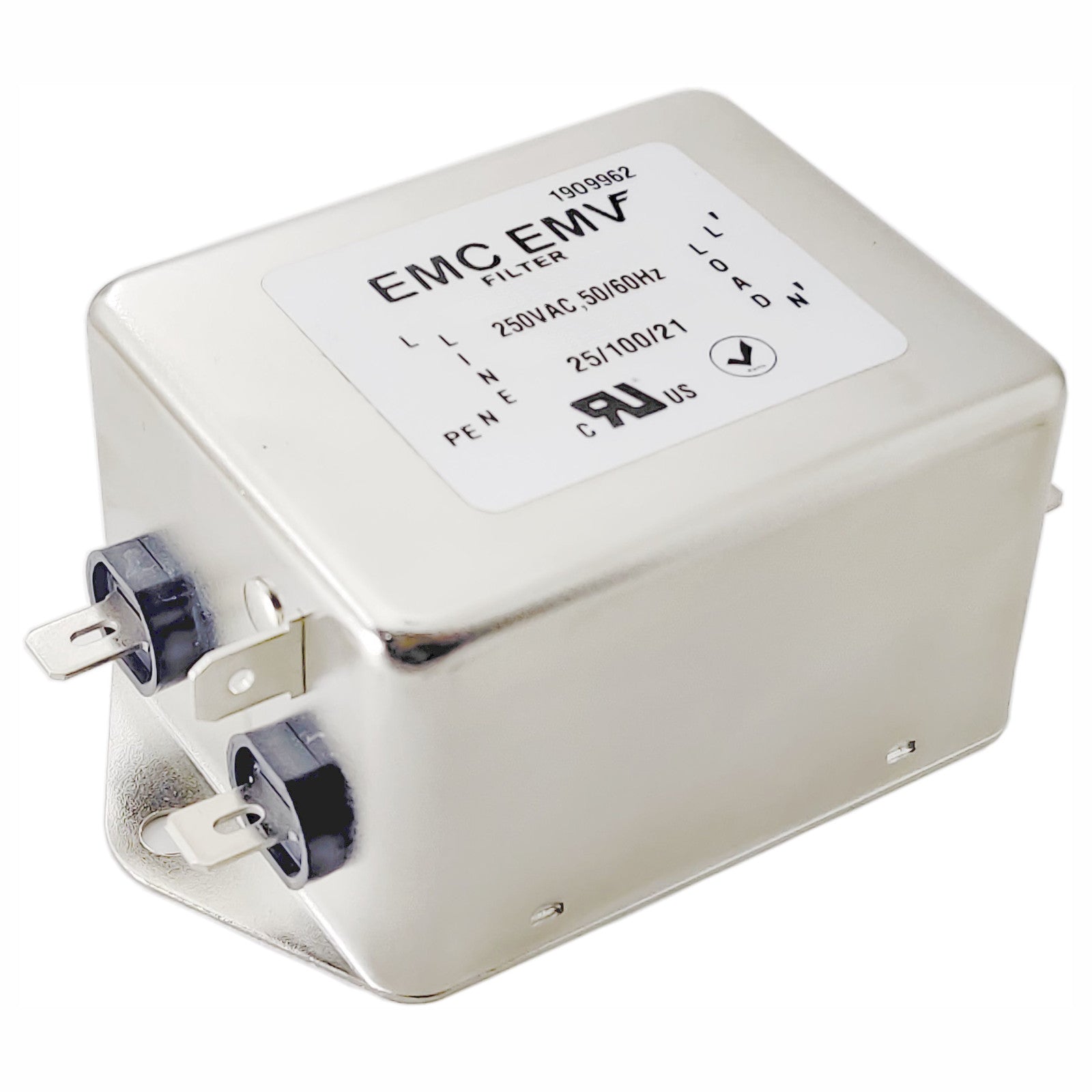

The EN2090-20-F EMI filter provides effective and reliable protection for equipment powered by up to 20 A, which requires stable operation free from electromagnetic interference. Thanks to its high attenuation efficiency, the filter is ideal for industrial automation systems, modern power systems, advanced audio equipment, and sensitive IT systems.
Equipped with 6.3 mm connectors, the EN2090-20-F interference filter enables quick and robust installation. The metal housing effectively protects against external interference, while the higher leakage current ensures efficient operation even in demanding operating environments. It is an ideal solution for those who want maximum stability and protection for their equipment.
