Akyga

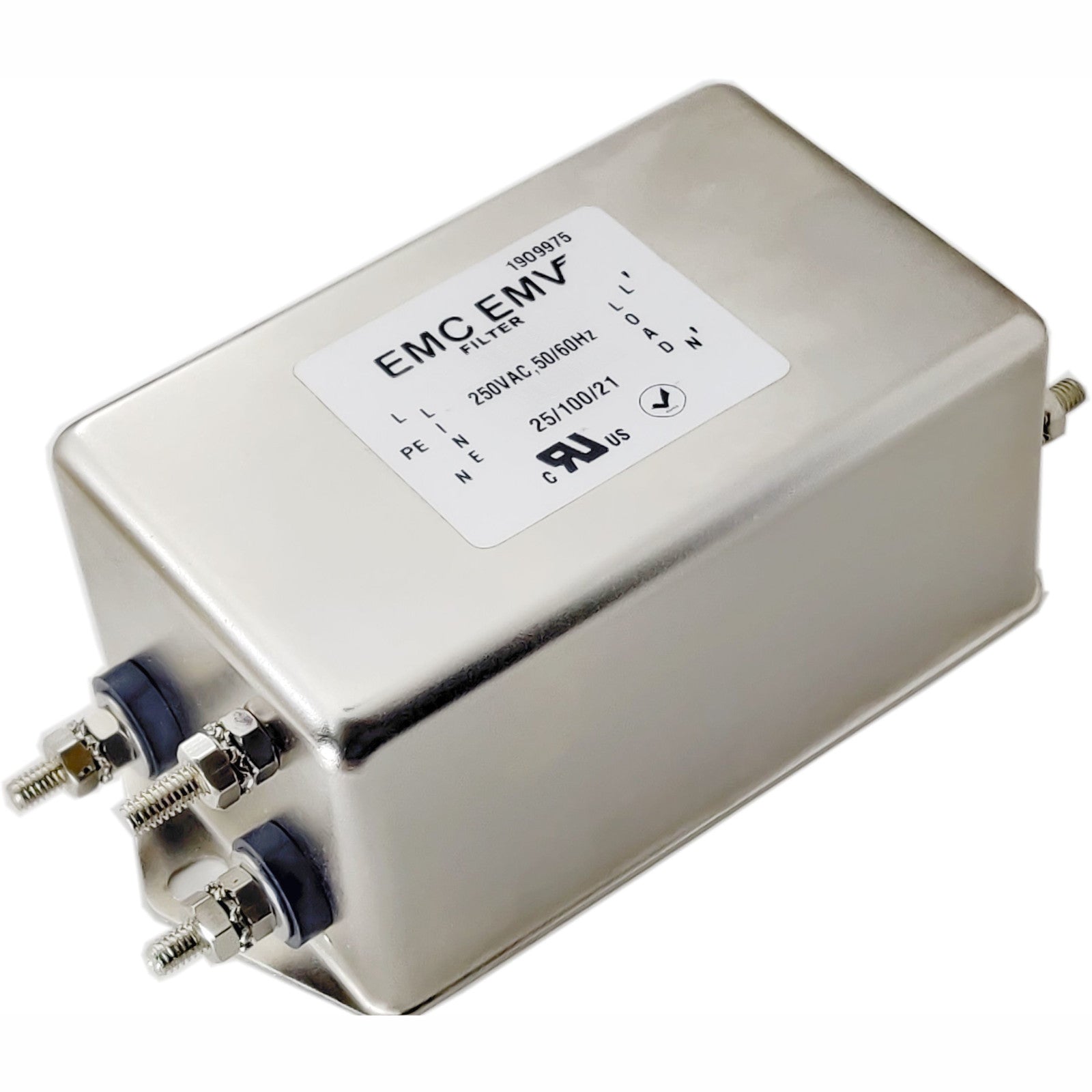

EMI suppression filter EN2090-20-S 20A
15.490 Ft
gross price
Supplier stock · approx. 1-2 weeks
Item number: EN2090-20-S
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | EN2090-20-S |
| Product type | EMI filter |
| Filter type | Anti-interference |
| Maximum operating current | 20 A |
| Connectors | M4 mm priključci |
| Leakage current | 1.00mA @120 VAC 60 Hz, 1.73mA @250 VAC 50 Hz |
| Number of poles | 2 |
| Material | Metal |
| Temperature | -25`C - +100`C |
| Product size (L x W x H) | 124 x 57 x 45 mm |
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720139030 |
0 more technical details
The data shown comes from the manufacturer; illustrations may differ.
Description
The EN2090-20-S EMI filter is a professional solution designed to protect systems operating with a load of up to 20 A. It is ideal for industrial applications, large automation equipment, server systems, and other demanding systems where voltage stability and purity are crucial.
With M4 screw terminals, it provides a durable and secure connection even for thicker wires and higher currents. The metal housing guarantees effective shielding against electromagnetic interference and high resistance to harsh environments. The EN2090-20-S is an interference filter that combines robustness, efficiency, and reliability in one compact design.
