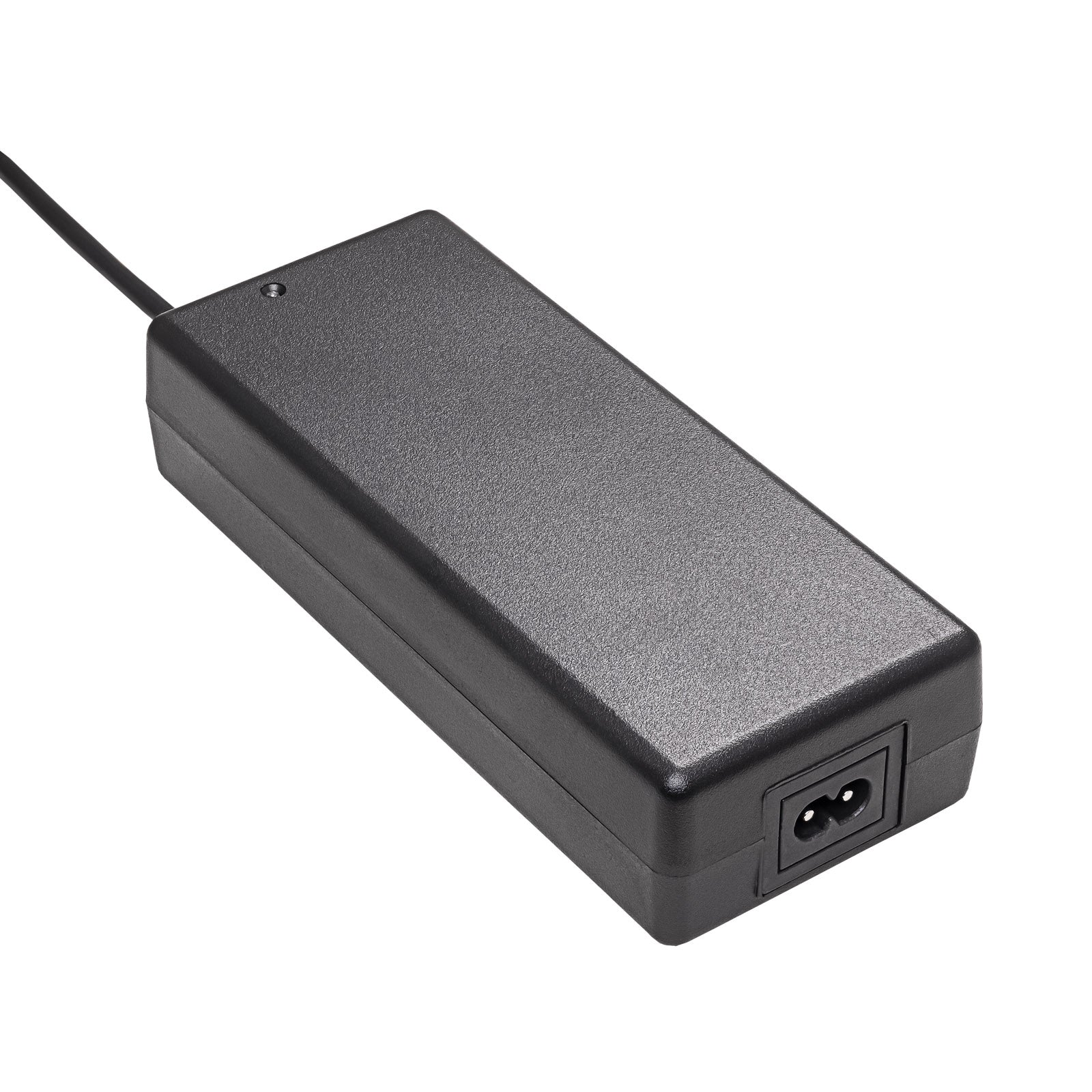

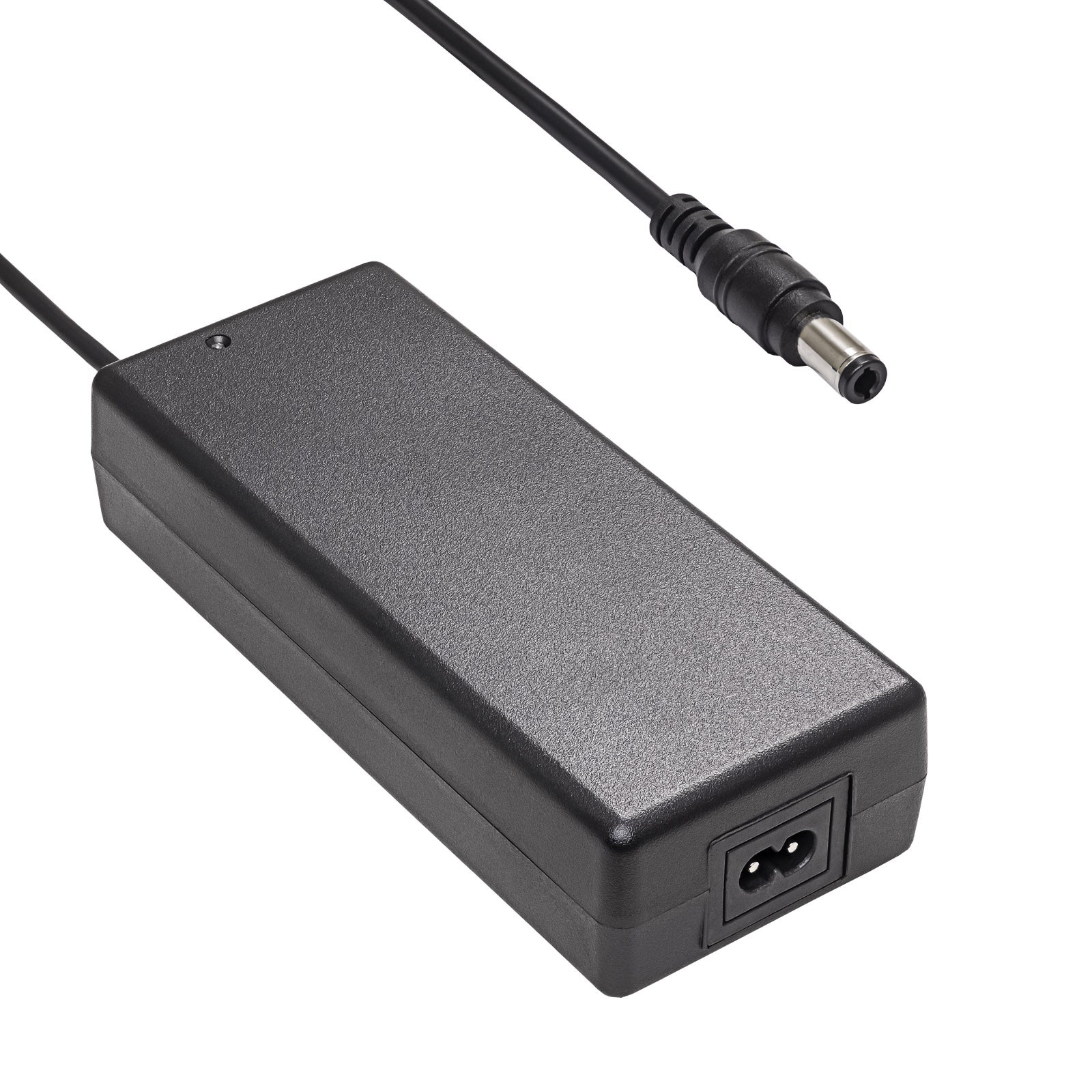

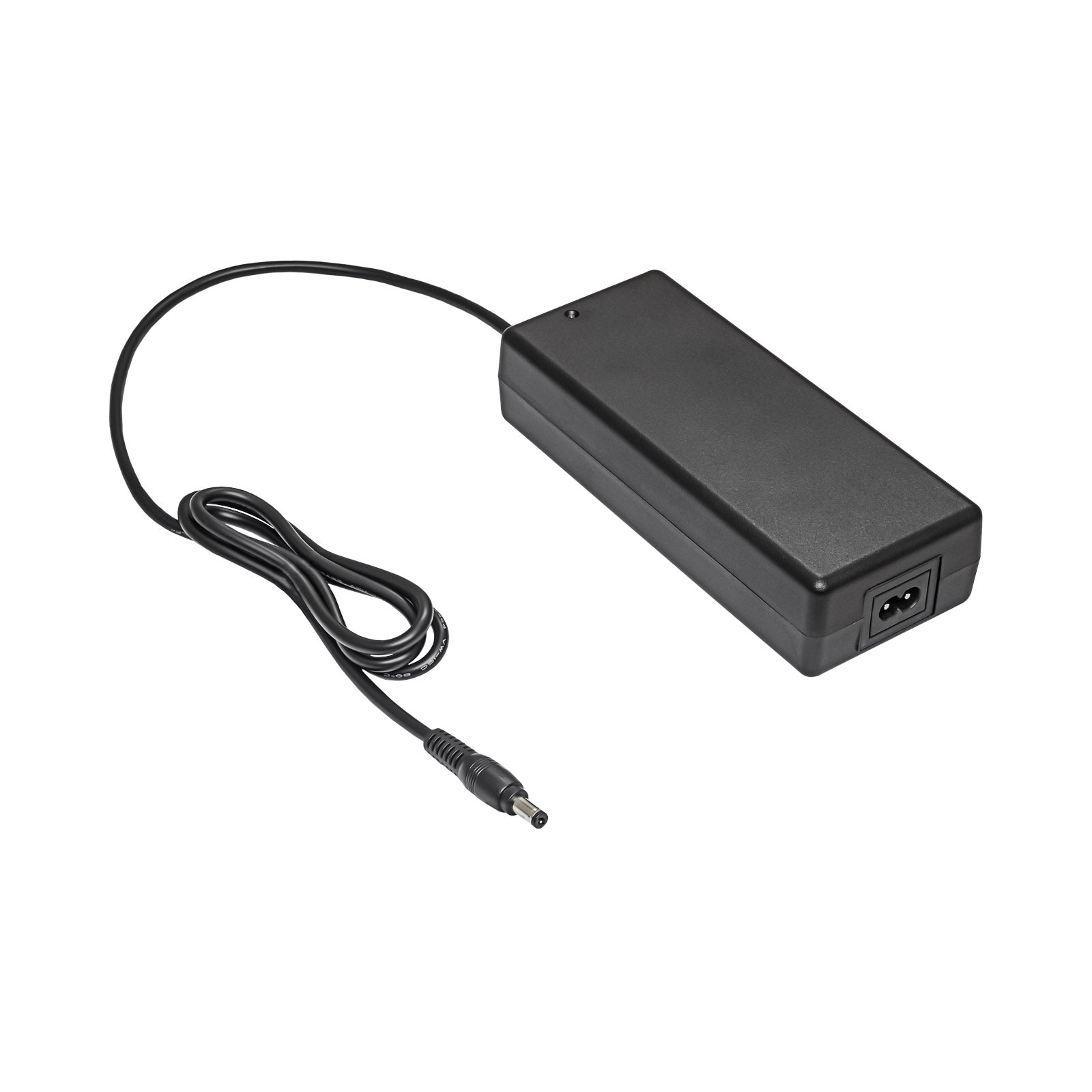

Power Supply AK-EV-06 54.6V / 2A 110W DC 5.5 x 2.1 mm
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | AK-EV-06 |
| Responsible organisation | Akyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, contact@akyga.com |
| Product type | AC/DC adapter |
| Supply voltage | 100-240 V |
| Power consumption | < 2.5 A |
| Efficiency | > 80 % |
| Output voltage | 54.6 V |
| Output current | 2 A |
| Output cable length | 1 m |

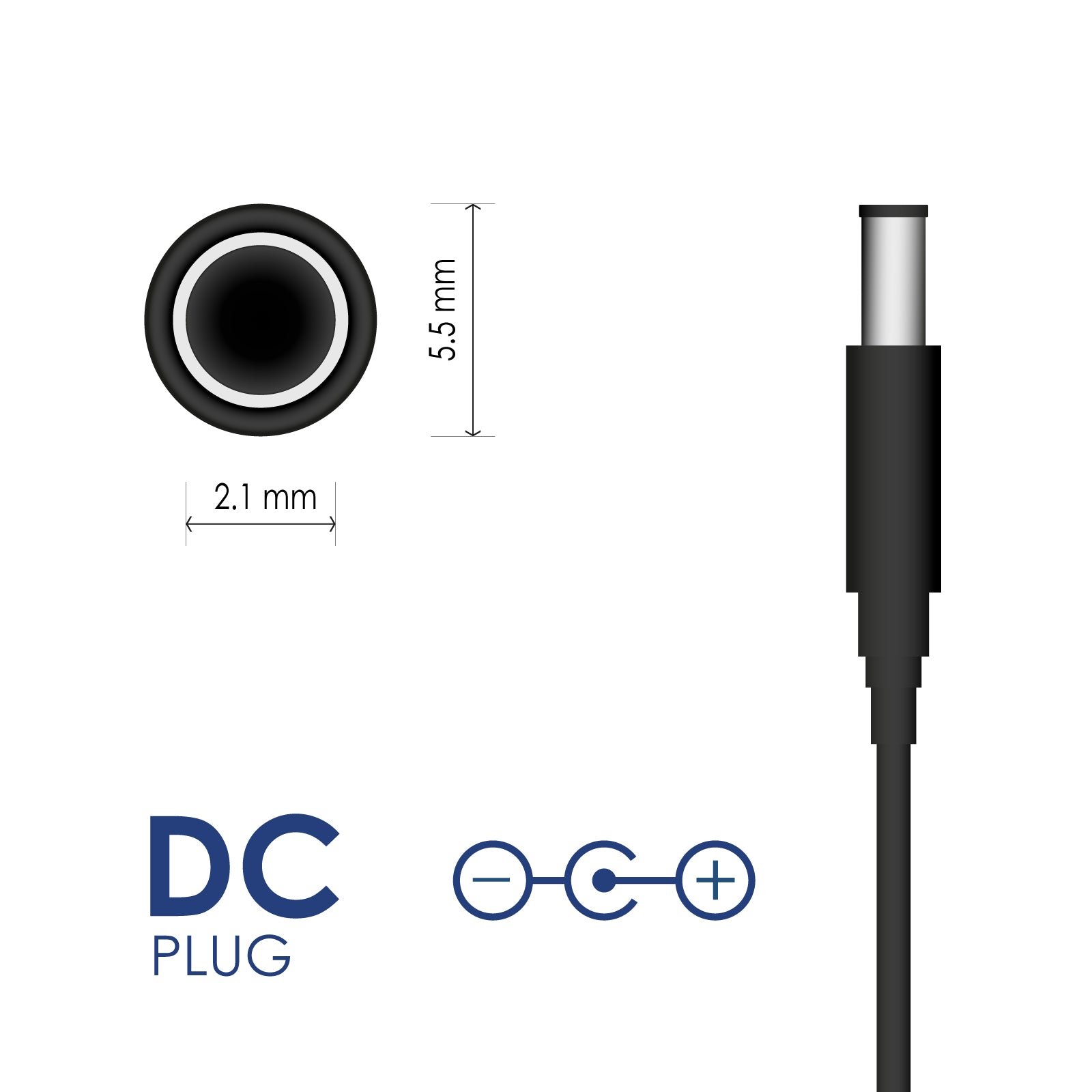

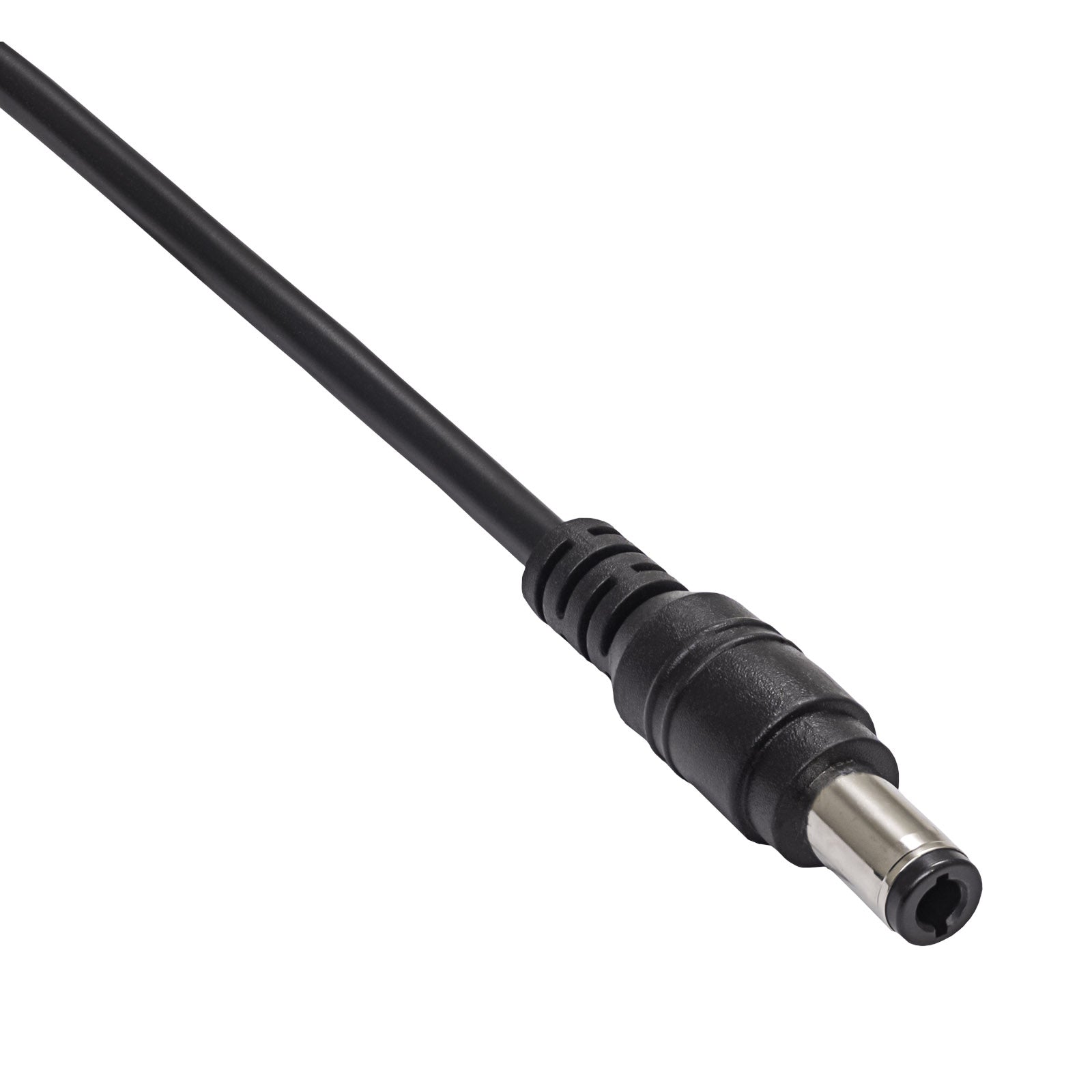

| Output connector | DC 5.5 x 2.1 mm |
| Maximum power | 110 W |
| Power input | IEC C8 |
| Mechanical switch | None |
| Grounding | None (class II) |
| IP rating | IP20 |
| OVP | Yes |
| OCP | Yes |
| OPP | Yes |
18 more technical details
| SCP | Yes |
| With ferrite filter | None |
| Power cable included | None |
| Material | ABS |
| Product colour | Black |
| Backlight colour | Bicolor LED |
| Display | None |
| MTBF | 10000 h |
| Packaging | EcoBox |
| Product size (L x W x H) | 170 x 40 x 72 mm |
| Package size (L x W x H) | 250 x 46 x 111 mm |
| Net weight | 452 g |
| Gross weight | 591 g |
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720135933 |
| Warranty | 24 months |
Description
The Akyga® AK-EV-06 is a product designed for charging bicycles and skateboards equipped with a 48 V battery. The device's maximum power is 110 W, and it can be charged with output parameters of 54.6 V / 2 A. The 1 meter long charger output cable ends with a 5.5 x 2.1 mm plug, and the charger itself is powered by an IEC C8 connector. The device is characterized by high efficiency and reliability. Additionally, it has an LED indicator that changes color from red to green when the charging process is complete.
The charger is compatible with popular vehicle models such as Archos, Koowheel, etc.
The product is available in black, in environmentally friendly Ecobox packaging.
The power supply is compatible with bicycle brands such as Haibike, Merida, Batavus, Ecobike, Giant, Fischer, Freway, Gazelle, etc.
