Power supply AK-ND-51 20V / 2.25A 45W Slim Tip
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | AK-ND-51 |
| Product type | AC/DC adapter |
| Compatible with | Lenovo |
| Series | Dedicated |
| Responsible organisation | Akyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, contact@akyga.com |
| Supply voltage | 100-250 V |
| Power consumption | < 1.5 A |
| Efficiency | > 80 % |
| Output voltage | 20 V |
| Output current | 2.25 A |
| Output cable length | 1.2 m |

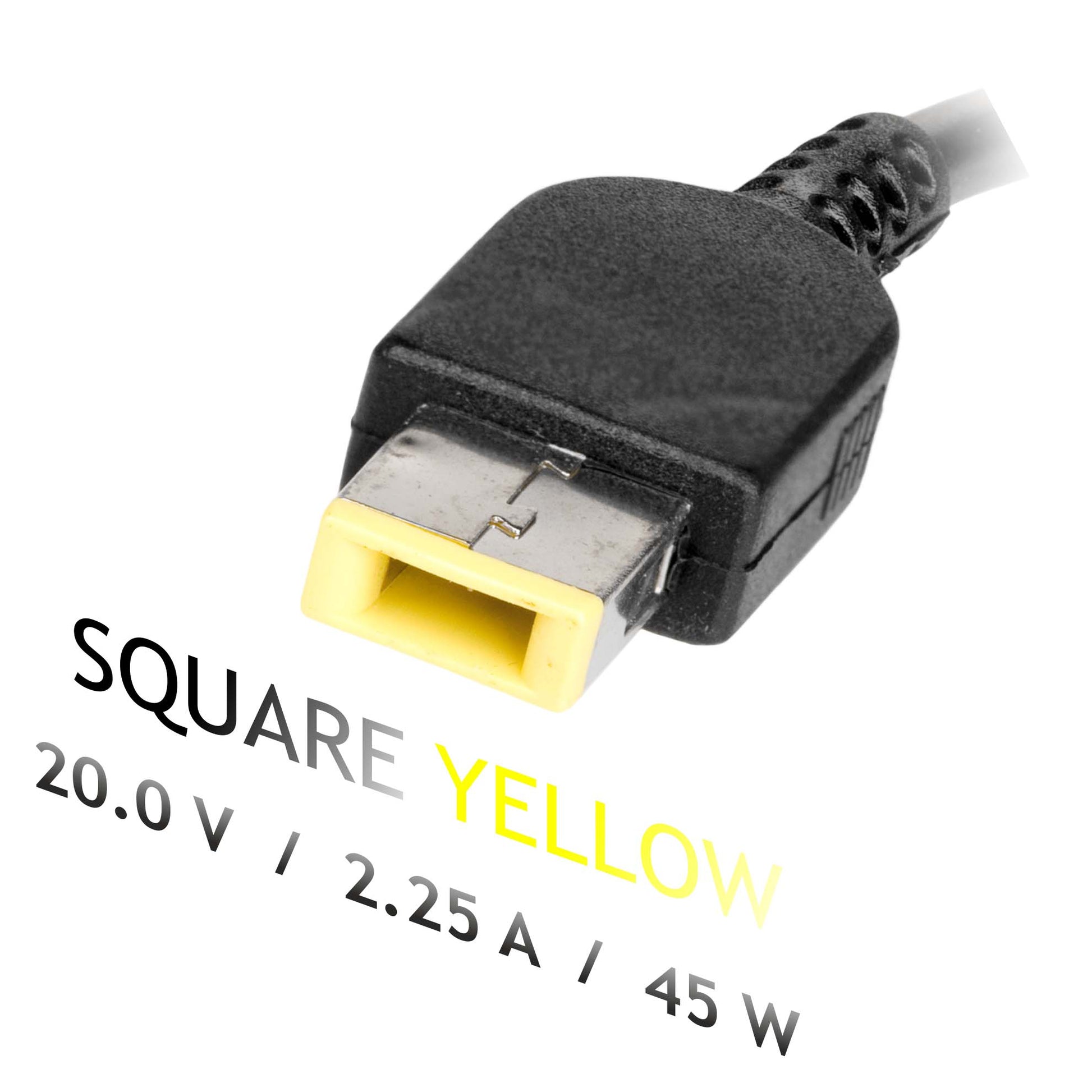

| Output connector | Slim Tip |
| Maximum power | 45 W |
| Power input | IEC C6 |
| Mechanical switch | None |
| Grounding | Yes |
| Soft start | Yes |
24 more technical details
| OVP | Yes |
| OCP | Yes |
| OPP | Yes |
| OTP | Yes |
| SCP | Yes |
| USB connector | None |
| Power cable included | No |
| Material | ABS |
| Product colour | Black |
| Backlight colour | Green LED |
| Display | None |
| MTBF | 100000 h |
| Temperature | 5 - 50 °C |
| Packaging | EcoBox |
| Product size (L x W x H) | 114 x 49 x 30 mm |
| Package size (L x W x H) | 190 x 92 x 38 mm |
| Net weight | 185 g |
| Gross weight | 234 g |
| CE compliance | Yes |
| FCC compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720133892 |
| Warranty | 24 months |
Description

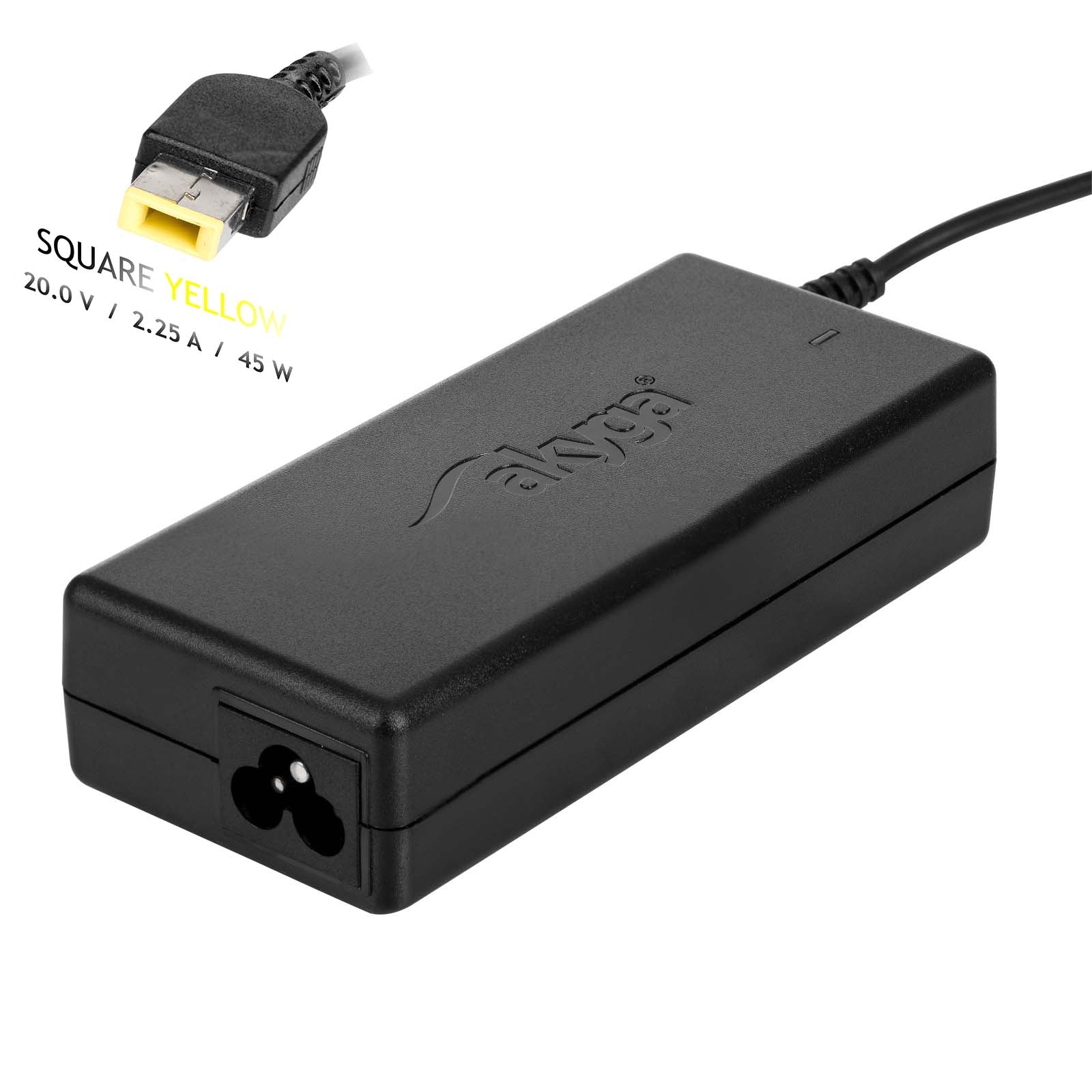

The Akyga® AK-ND-51 is a dedicated notebook power supply for devices requiring 20V / 2.25A, 45W of power, and equipped with a Slim Tip (also known as SQUARE YELLOW) connector.
The power supply cable is equipped with a high-quality ferrite core to prevent and protect devices from any possible operating current and high-frequency noise. The safety features (OVP, OTP, OPP, SCP, and OCP) ensure 100% safe and stable operation for both the powered device and the power supply. The equipment provides additional safety with soft start technology, which neutralizes the shock of the first current surge when the device is started.
All Akyga power supplies are packaged in environmentally friendly EcoBox packaging.
The power supply is primarily intended for Lenovo / IBM laptops.
We recommend using our notebook power adapter search engine.
