Power Supply TFX AK-T1-250 250W 80+ Gold
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | AK-T1-250 |
| Product type | Computer power supply |
| Format | TFX |
| Series | Ultimate |
| Responsible organisation | Akyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, contact@akyga.com |
| Supply voltage | 230 V |
| Power consumption | < 3 A |
| Efficiency | > 80 % |
| 80 PLUS compliance | Yes |
| 80 PLUS certification | Gold |
| Current on the +3.3V rail | 15 A |
| Current on the +5V rail | 15 A |
| Maximum power on the +3.3V and +5V rails | 80 W |
| Current on the +12V rail | 16 A |
| Maximum power on the 12V rail | 192 W |
| Maximum power | 250 W |
| Power input | IEC C14 |
| Motherboard power connector | 24-pin |
| EPS12V 8 pin power connector | 1 pc ( 4 + 4-pin ) |
| PCI-E 6 pin power connector | None |
| PCI-E 6 + 2 pin power connector | None |
| PCI-E 8 pin power connector | None |
| Molex connector | 1 pc |
29 more technical details
| Mini-Molex connector | None |
| SATA connector | 3 pcs |
| PFC filter | Active |
| Grounding | Yes |
| OVP | Yes |
| OCP | Yes |
| OPP | Yes |
| OTP | Yes |
| SCP | Yes |
| UVP | Yes |
| Fan size | 80 mm |
| Fan control | Automatic |
| Cable length | 30 cm |
| Power cable included | None |
| Material | Galvanised steel |
| Product colour | Grey |
| MTBF | 100000 h |
| Temperature | 5 - 50 °C |
| Packaging | Film |
| Product size (L x W x H) | 175 x 85 x 65 mm |
| Package size (L x W x H) | 252 x 110 x 68 mm |
| Net weight | 836.4 g |
| Gross weight | 846.4 g |
| CE compliance | Yes |
| FCC compliance | No |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720135612 |
| Warranty | 24 months |
Description

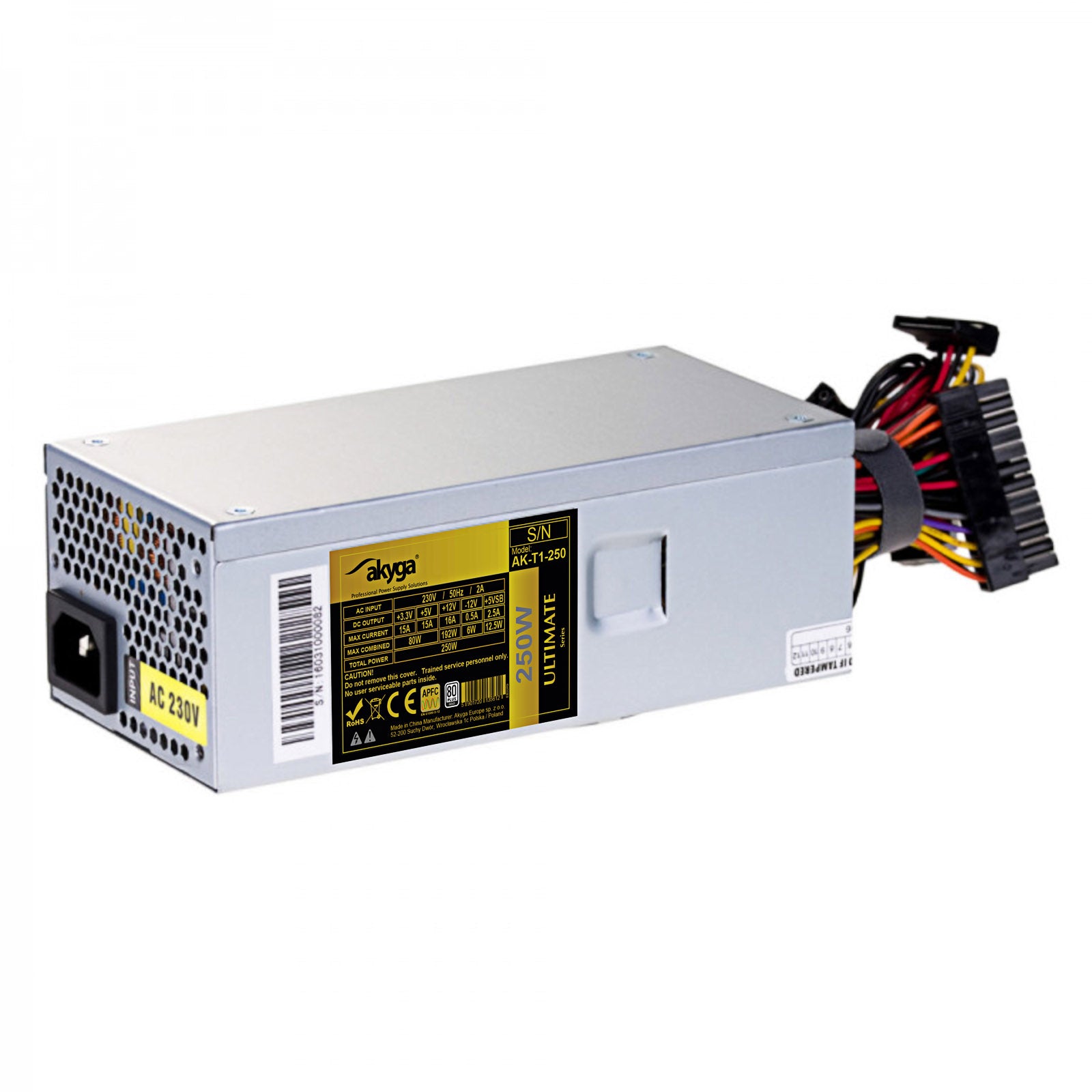

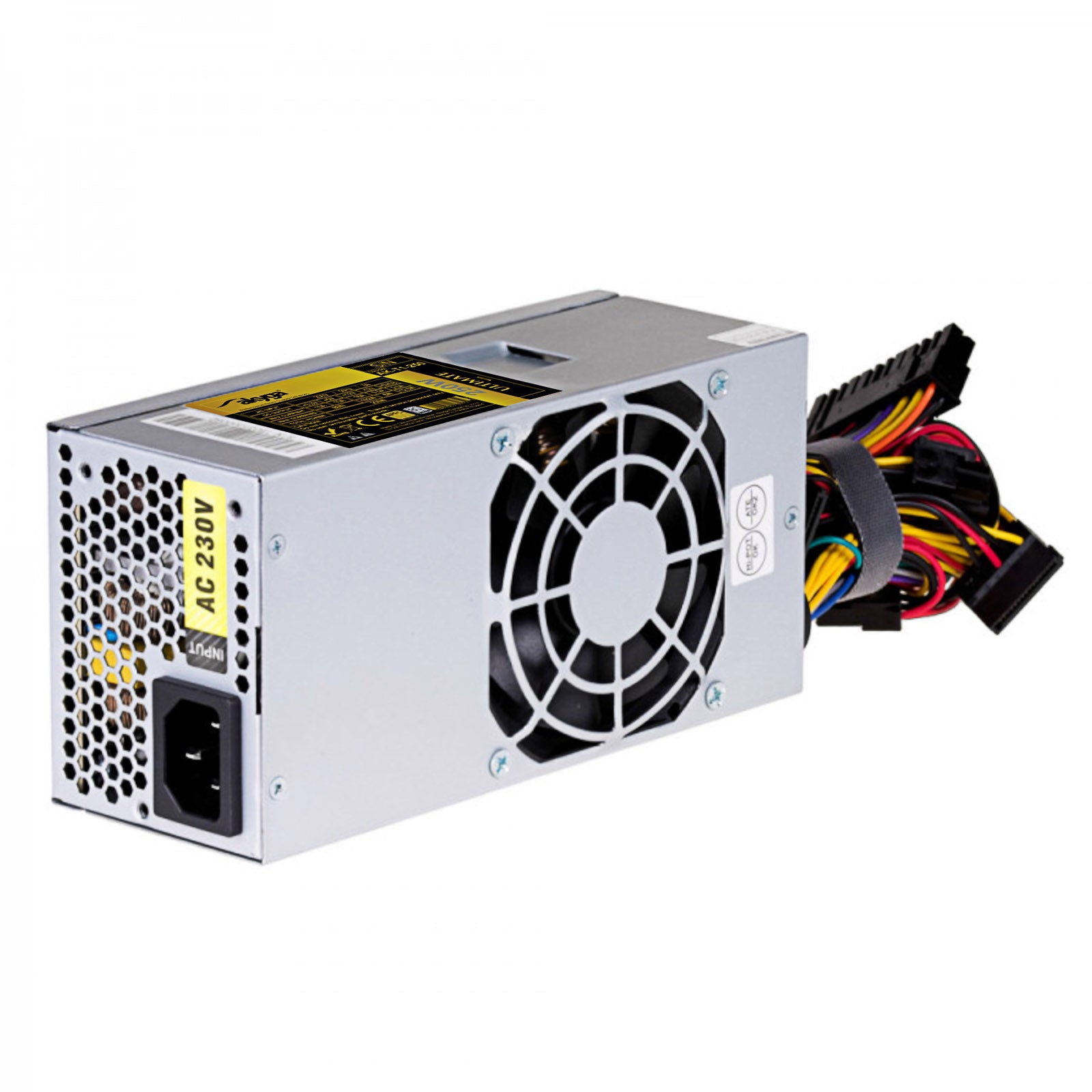

The Akyga® AK-T1-250 TFX power supply with 250W is an advanced, compact power supply for mini and media PC systems. It supports the latest construction standards, ensuring high performance and stability.

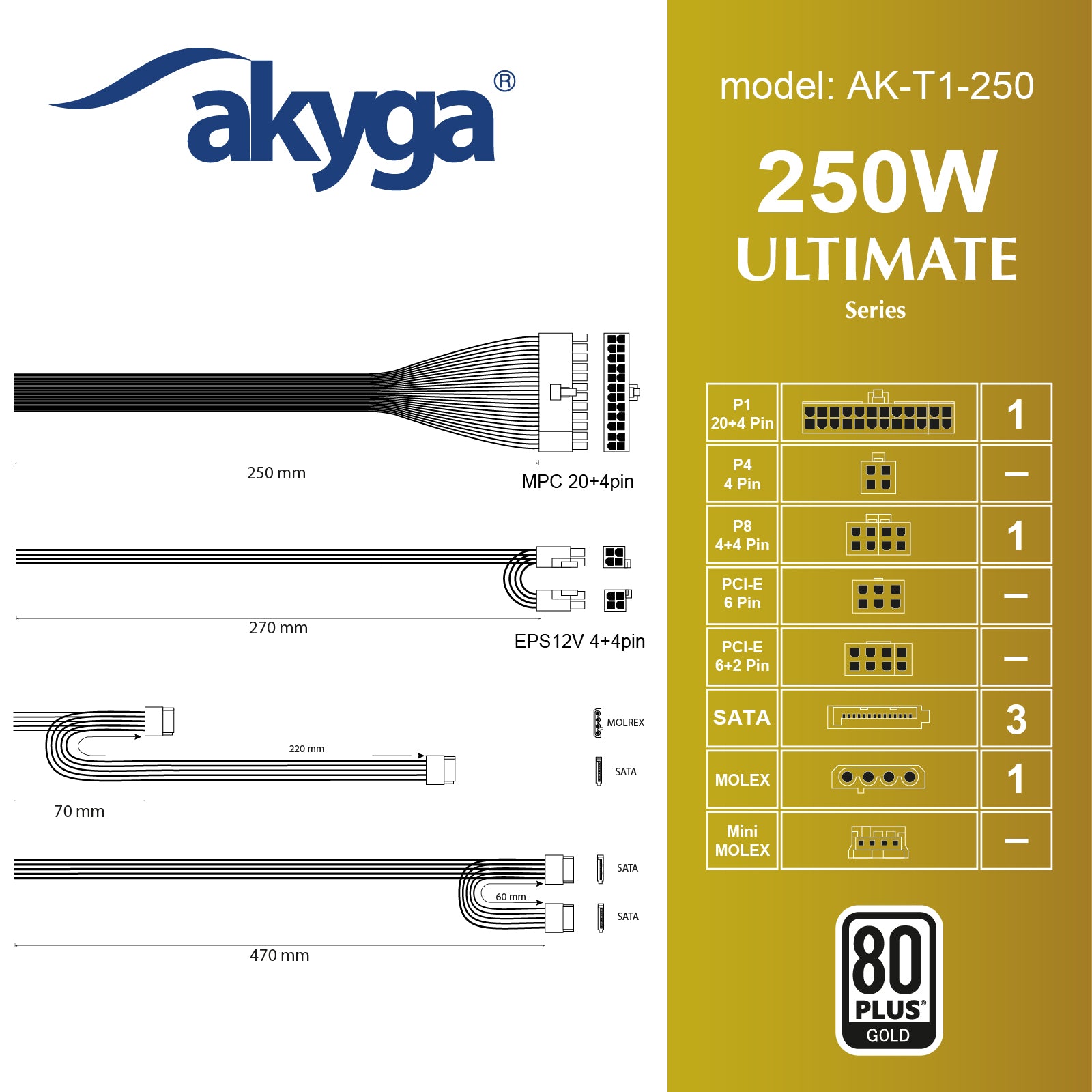

The power supply features a 4+4-pin connector, a MOLEX connector, 3 x SATA connectors, and a universal 24-pin motherboard connector. High efficiency is guaranteed by the 80 PLUS® certification, which ensures that at least 80% of the energy supplied by the power supply is received by the computer components, and no more than 20% of the energy is lost as heat. High efficiency allows for efficient power delivery. The stable operation of the power supply affects the reliability of all computer components. Efficient cooling is provided by a compact, silent 8 cm diameter fan. The power supply is ideal for small and medium-sized cases, thanks to the optimized 36 cm long cable set. The product is made of durable galvanized steel.
An essential aspect is that we have built in numerous important protective devices (OVP, OCP, OPP, OTP, SCP, UVP) and an active PFC filter, which protects the motherboard, processor, and other components from damage and stabilizes the power supply's operation, allowing it to function without unwanted interference. The TFX AK-T1-250 power supply is a high-quality product that meets current requirements and modern standards.
