Rubber Power Cable CEE 7/17 AK-OT-06S CU 2x1.5mm² 5m
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | AK-OT-06S |
| Product type | power cable |
| Responsible organisation | Akyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, contact@akyga.com |
| Earth wire | No |
| Cable length | 5 m |
| Cable connector #1 | CEE 7/17 |
| Cable connector #2 | Unsealed |
| Cable material | Copper |
| Wire gauge | 2x 1.5 mm2 |
| Standard | H05RR-F 2X1.5 |
| Product colour | Black |
| Product size (L x W x H) | 320 x 75 x 60 mm |
| Net weight | 530 g |
| CE compliance | Yes |
| FCC compliance | No |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5906708751181 |
| Warranty | 24 months |
0 more technical details
Description
Convenient connection of non-earthed appliances

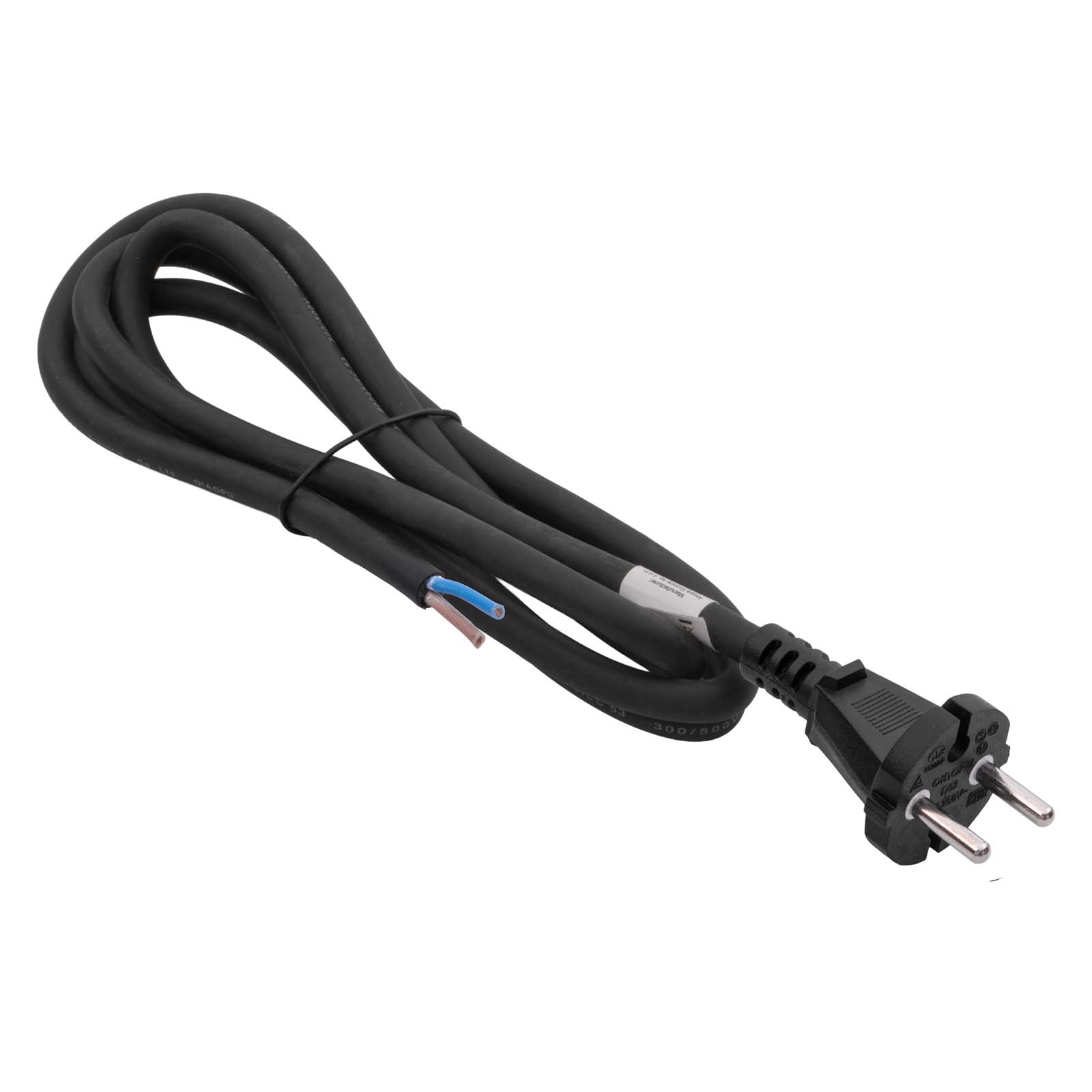

The Akyga® AK-OT-06S power cable is fitted with a CEE 7/17 plug and exposed wires designed for direct installation in the appliance. It can be used to replace a damaged cable in power supplies, power tools, lighting and other AC-powered equipment. The 5 m length makes it easier to work away from a socket and allows the cable to be routed conveniently at a service or workshop workstation.
This model does not have a protective earth conductor. It is intended for Class II appliances, which, thanks to their double or reinforced insulation, do not require earthing.
Rubber-sheathed cable, 2×1.5 mm²
The cable consists of two copper conductors with a cross-section of 1.5 mm². The rubber insulation enhances its flexibility and resistance to damage caused by frequent moving, coiling and uncoiling. As a result, the cable performs well during servicing work and in workshop conditions.
The CEE 7/17 plug is rated for currents up to 16 A at 250 V AC. It fits popular type E and F sockets, used in countries such as Poland, Germany and France. However, it does not have protective contacts, so the cable must not be used with equipment that requires earthing.
Open ends for direct installation
The exposed wires allow the connection method to be adapted to the design of the device being repaired. They can be fitted into a suitable terminal block, screw terminal or other secure connection point. Installation should be carried out with the power disconnected by a person with electrical engineering knowledge.
For servicing, workshops and equipment repairs
The Akyga AK-OT-06S is ideal as a replacement for a worn or damaged cable in a device. The long, rubber-sheathed cable is a practical choice for service technicians, electricians, electronics engineers and those involved in equipment repairs.
