Tiandy

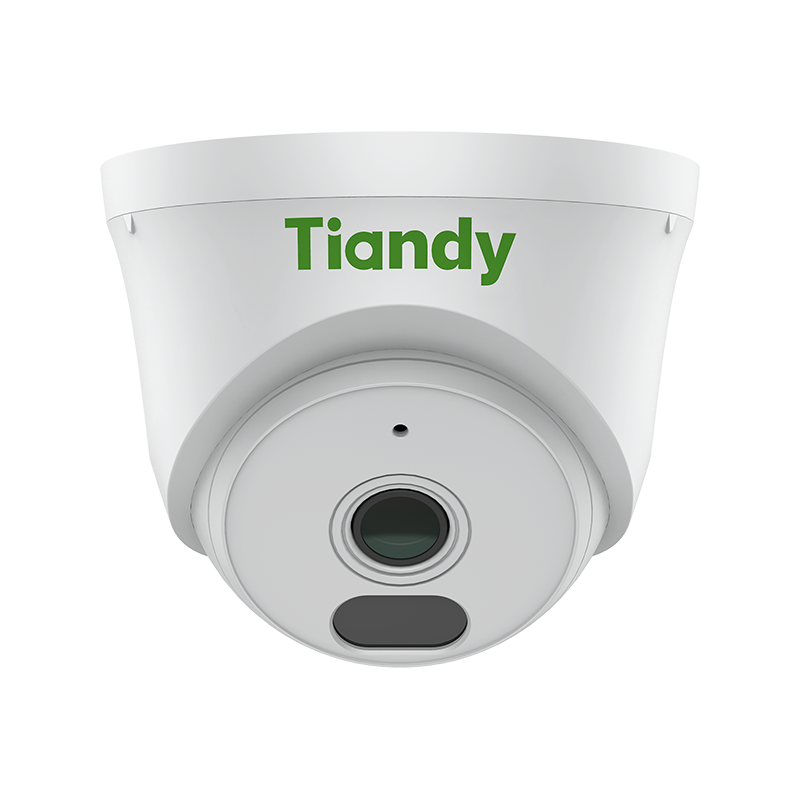

Tiandy TC-C320N 1CNB-28 – 2 MP Turret Camera (2.8mm)
27.990 Ft
gross price
Legalacsonyabb ár az elmúlt 30 napban: 11.790 Ft
In stock
Delivery: 1 working day
Item number: TC-C320N 1CNB-28
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Manufacturer | Tiandy |
| Product code | TC-C320N 1CNB-28 |
| SKU | 1D.20010.023654 |
| Product type | IP turret camera |
| Series | AK entry series (AK-II) |
| Image sensor | 1/3" CMOS |
| Max. resolution | 2 MP,1920×1080@30 fps |
| Min. illumination | Colour: 0,02 lux (F2.0, AGC be); B/W: 0 Lux with IR |
| Lens | Fixed focal lens, 2,8 mm |
| Field of view | 93°(H); 53°(V); 104.8°(D) |
| Night mode | IR-cut filter with auto switch (ICR) |
| IR range | max. 30 m |
| WDR | DWDR |
| Video compression | S+265/H.265/H.264B/H.264M/H.264H |
8 more technical details
| Audio | 1 × built-in microphone |
| Housing | Plastic |
| Protection rating | Surge4000V; ESD6000V |
| Power supply | PoE:IEEE 802.3af, max. 2 W |
| Operating temperature | -30 ... +60 °C |
| Size | 94 × 94 × 78 mm |
| Gross weight | 170 g |
| Warranty | 24 months |
The data shown comes from the manufacturer; illustrations may differ.
Manufacturer datasheet
| Camera | |
| Image Sensor | 1/3"CMOS |
| Min. Illumination | Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >52dB |
| Angle Adjustment | 0~340°(P); 0~75°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F2.0 |
| Aperture Type | Fixed |
| Field of View | 93°(H); 53°(V); 104.8°(D) |
| DORI Distance | Detect:41.48m Observe:16.46m Recognize:8.3m Identify:4.1m |
| Illuminator | |
| IR LEDs | 1 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz |
| Image | |
| Max. Resolution | 2MP,1920×1080@30fps |
| Main Stream | PAL:25fps(1920×1080, 1280×720) NTSC:30fps(1920×1080, 1280×720) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters; 16*16/32*32/48*48; Lattice |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| General Alarm | Motion Detection |
| Exceptions Alarm | IP Address Conflict |
| Network | |
| Protocols | RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1×Built-in Mic |
| General | |
| Web Client Language | English |
| Operating Temperature | -30℃~60℃(-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃(-22℉~140℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | PoE:IEEE 802.3af,Max. 2W |
| Protection | Surge4000V; ESD6000V |
| Boundary Dimensions | 94(L)94(W)78(H)mm |
| Package Dimensions | 105(L)105(W)85(H)mm |
| GrossWeight | 0.17kg |
Description
The Tiandy TC-C320N 1CNB-28 is an IP turret camera from the AK series, 2 MP, Fixed focal lens, 2.8 mm.
According to the manufacturer's DORI measurement it detects movement up to 41.48 m, observes shapes up to 16.46 m, recognises a person up to 8.3 m and identifies a face up to 4.1 m. These distances depend on mounting height and lighting.
In the dark the infrared illuminator reaches 30 m and the image switches to black and white.
Power comes from PoE (802.3af).
A built-in microphone records audio. It works with most recorders over ONVIF; with a Tiandy NVR the full feature set is available.
