Tiandy
Tiandy TC-C324S 2ETA-4 – 2MP IP camera (4mm full-color)
41.890 Ft
gross price
Made to order · approx. 6 weeks
Item number: TC-C324S 2ETA-4
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Manufacturer | Tiandy |
| Product code | TC-C324S 2ETA-4 |
| SKU | 1D.20010.024537 |
| Product type | IP camera |
| Series | SK-II Color Maker |
| Image sensor | 1/2.9" CMOS |
| Max. resolution | 2 MP,1920×1080@30 fps |
| Min. illumination | Colour: 0,002 lux (F1.6, AGC be); B/W: 0 Lux with IR |
| Lens | Fixed focal lens, 4 mm |
| Field of view | 84.8°(H); 44°(V); 99.7°(D) |
| Night mode | IR and white LED |
| IR range | max. 50 m |
| White light range | 15 m |
| WDR | TWDR |
| Video compression | S+265/H.265/H.264B/H.264M/H.264H |
| Audio | 1 × built-in microphone |
| Storage | microSD, microSDHC and microSDXC card, up to 512 GB |
7 more technical details
| Housing | Metal + plastic |
| Protection rating | Surge4000V; ESD6000V; IP67 |
| Power supply | DC 12 V±25%,max. 6 W; PoE:IEEE 802.3af, max. 6,5 W |
| Operating temperature | -30 ... +60 °C |
| Size | 165 × 73 × 70 mm |
| Gross weight | 370 g |
| Warranty | 24 months |
The data shown comes from the manufacturer; illustrations may differ.
Manufacturer datasheet
| Camera | |
| Image Sensor | 1/2.9"CMOS |
| Min. Illumination | Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | TWDR |
| S/N | >42dB |
| Angle Adjustment | 0~360°(P); 0~90°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 84.8°(H); 44°(V); 99.7°(D) |
| DORI Distance | Detect:40.00m Observe:15.87m Recognize:8.00m Identify:4.00m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | 15m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~6Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Image | |
| Max. Resolution | 2MP,1920×1080@30fps |
| Main Stream | PAL:25fps(1920×1080, 1280×720) NTSC:30fps(1920×1080, 1280×720) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | 8 rectangular static areas |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48; Lattice |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| General Alarm | Smart Alarm(human and vehicle detection) |
| Exceptions Alarm | Disk Full; Disk R/W Error; IP Address Conflict; Network Disconnection |
| Linkage Method | Trigger Recording; Trigger Capture; Notify Surveillance Center |
| Network | |
| ANR | Yes |
| Protocols | RTSP; HTTP; TCP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4; SSH; Unicast; ARP; FTP |
| System Compatibility | P2P(Mutually exclusive with Profile G); ONVIF(Profile S/T/G) ; SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1×Built-in Mic |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 512GB |
| General | |
| Web Client Language | 20 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian/Greek |
| Operating Temperature | -30℃~60℃(-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃(-22℉~140℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC12V±25%,Max. 6W; PoE:IEEE 802.3af,Max. 6.5W |
| Protection | Surge4000V; ESD6000V; IP67 |
| Boundary Dimensions | 165(L)73(W)70(H)mm |
| Package Dimensions | 180(L)90(W)95(H)mm |
| GrossWeight | 0.37kg |
Description

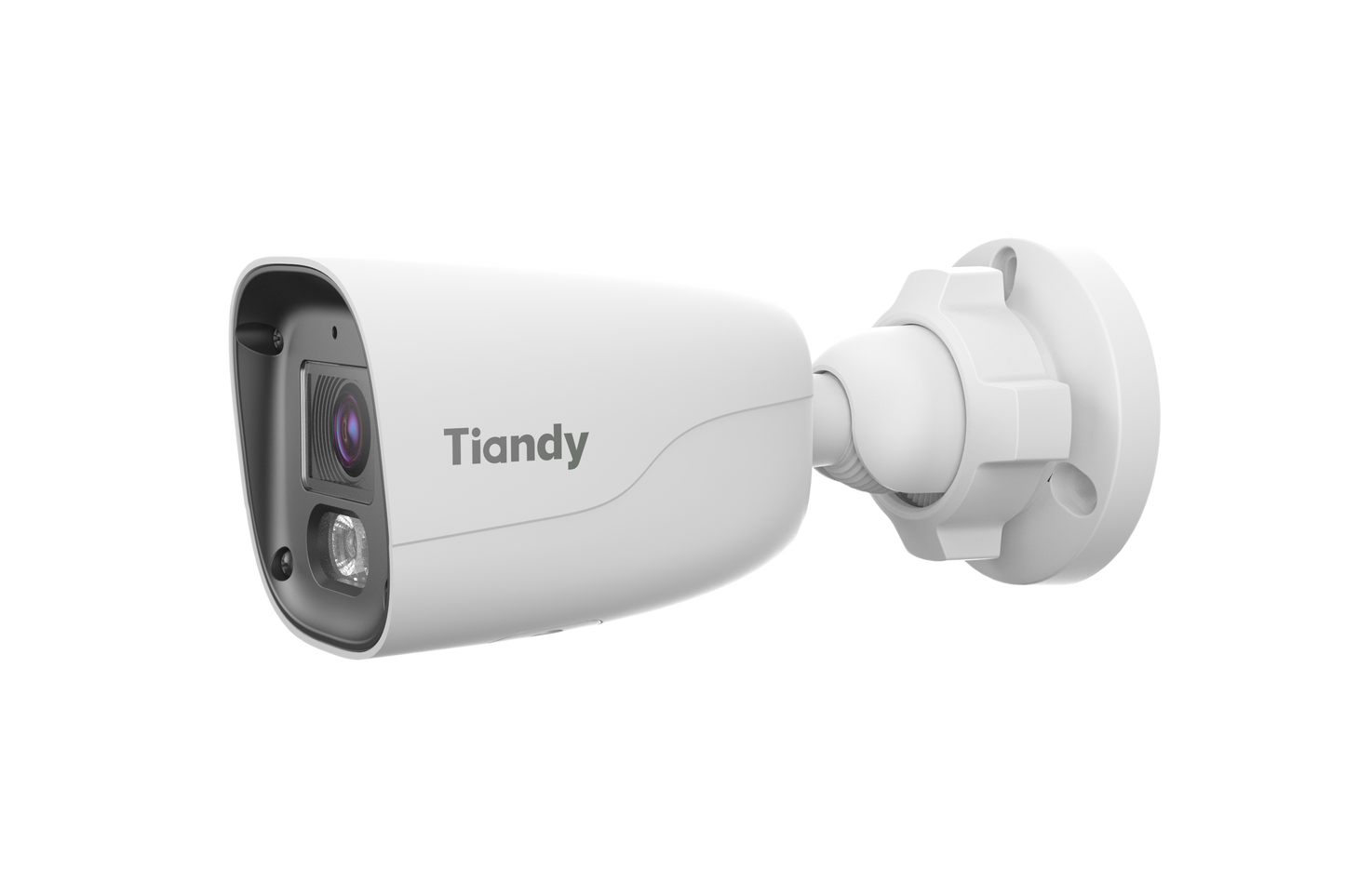

The Tiandy TC-C324S 2ETA-4 is an IP camera from the SK series, 2 MP, Fixed focal lens, 4 mm.
According to the manufacturer's DORI measurement it detects movement up to 40.00 m, observes shapes up to 15.87 m, recognises a person up to 8.00 m and identifies a face up to 4.00 m. These distances depend on mounting height and lighting.
In the dark the infrared illuminator reaches 50 m. The white LED gives a colour image up to 15 m, for cases where colour matters more than covert operation.
The IP67-rated housing is built for outdoor use. Power comes from PoE (802.3af) or 12 V DC. The card slot takes a microSD up to 512 GB, and after a network outage the recorder fills in the missing footage (ANR).
A built-in microphone records audio. It works with most recorders over ONVIF; with a Tiandy NVR the full feature set is available.
