Charger AK-CH-21 AC 230V + USB-A + 2x USB-C PD 5-20V / max. 5A 65W Quick Charge 3.0 GaN
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Product code | AK-CH-21 |
| Product type | AC/DC adapter |
| Series | Univerzalan |
| Responsible organisation | Akyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, contact@akyga.com |
| Supply voltage | 230 V / 50 Hz |
| Power consumption | max. 16 A |
| Maximum power | PD/PPS 65 W, AC 4000 W |
| Mechanical switch | No |
| Grounding | Yes |
| OVP | Yes |
| OCP | Yes |
| OTP | Yes |
| SCP | Yes |
| Power connector | CEE 7/7 |
| Cable length | 1.5 m |
| Power parameters | AC 230 V / 16 A |
| USB-A output voltage | 4.5 V / 5 A, 5 V / 4.5 A, 9 V / 3 A, 12 V / 5 A, 20 V / 1.5 A ( Max. 30 W) |
| USB-C output voltage | USB-C1 - 5 V / 3 A , 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 3.25 A ( Max. 65 W), PPS: 3.3-11 V / 5 A ( Max. 65 W), USB-C2 - 5 V / 3 A , 9 V / 3 A, 12 V / 2.25 A, 15 V / 2 A, 20 V / 1.5 A ( Max. 30 W) |
| Material | PC V0 Fireproof |
| Product colour | Black |
| Backlight colour | Blue LED |
| Temperature | 0 - 25 °C |
| Product size (L x W x H) | 107 x 48 x 40 mm |
| Package size (L x W x H) | 256 x 112 x 51 mm |
8 more technical details
| Net weight | 430 g |
| Gross weight | 497 g |
| CE compliance | Yes |
| FCC compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720139191 |
| Warranty | 24 months |
Description

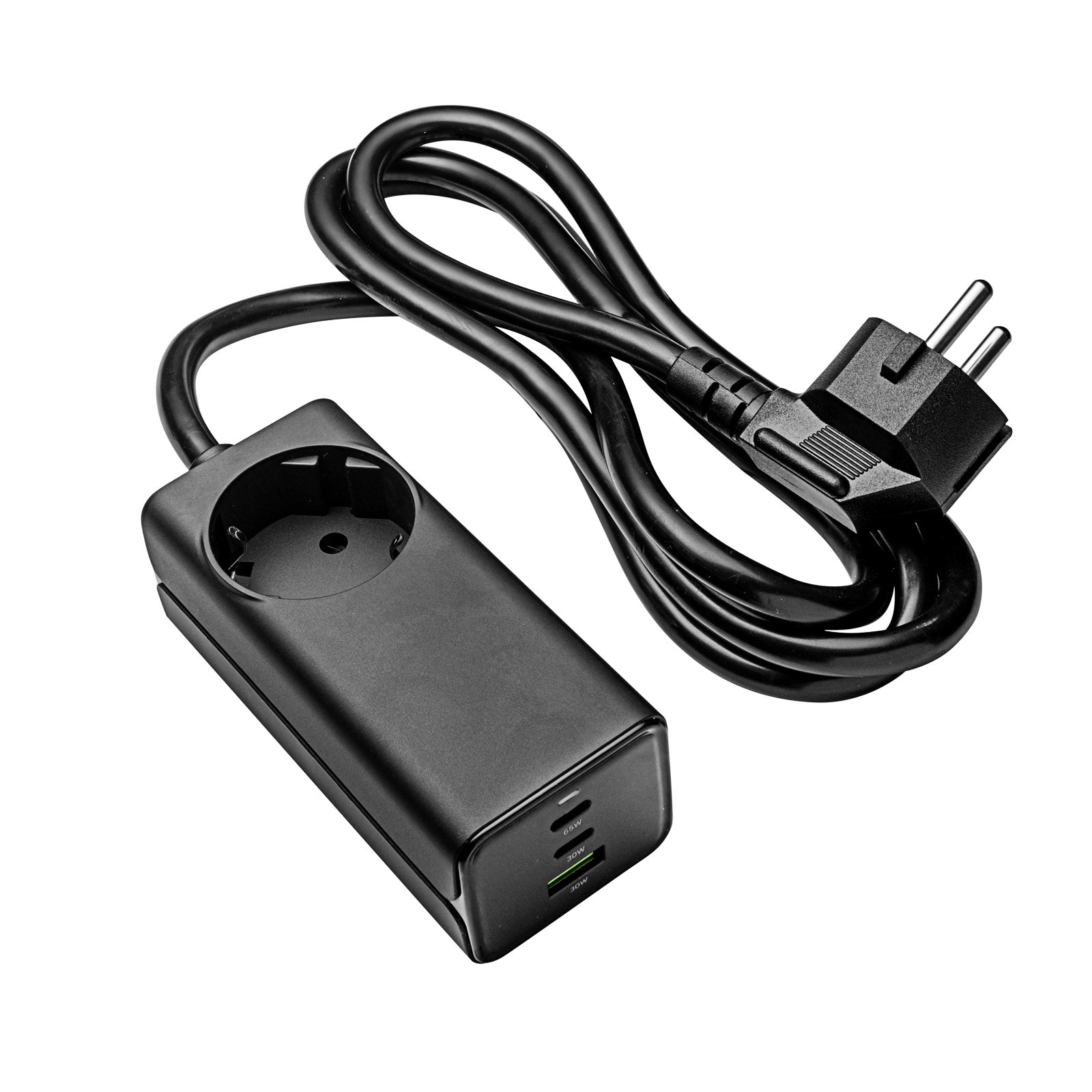

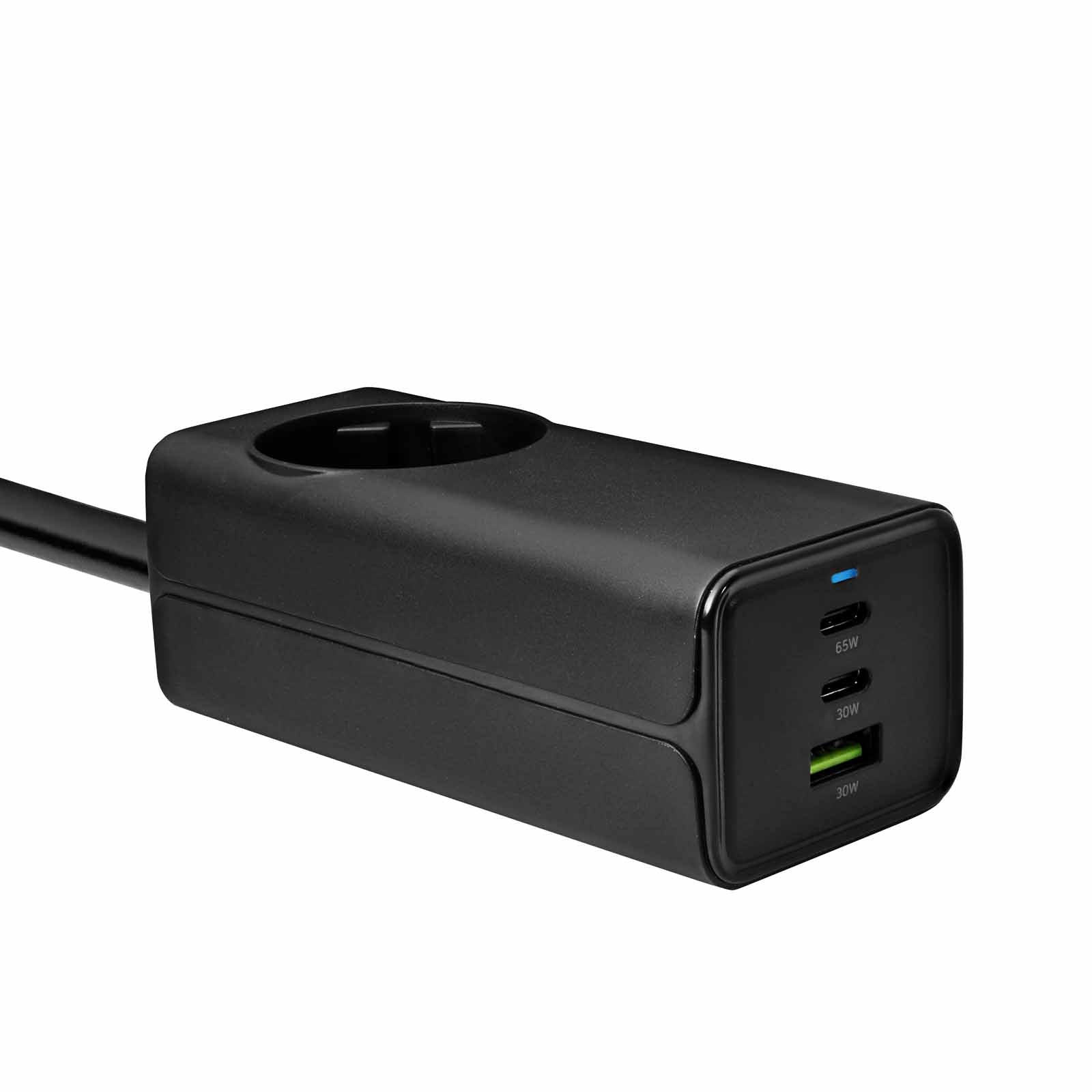

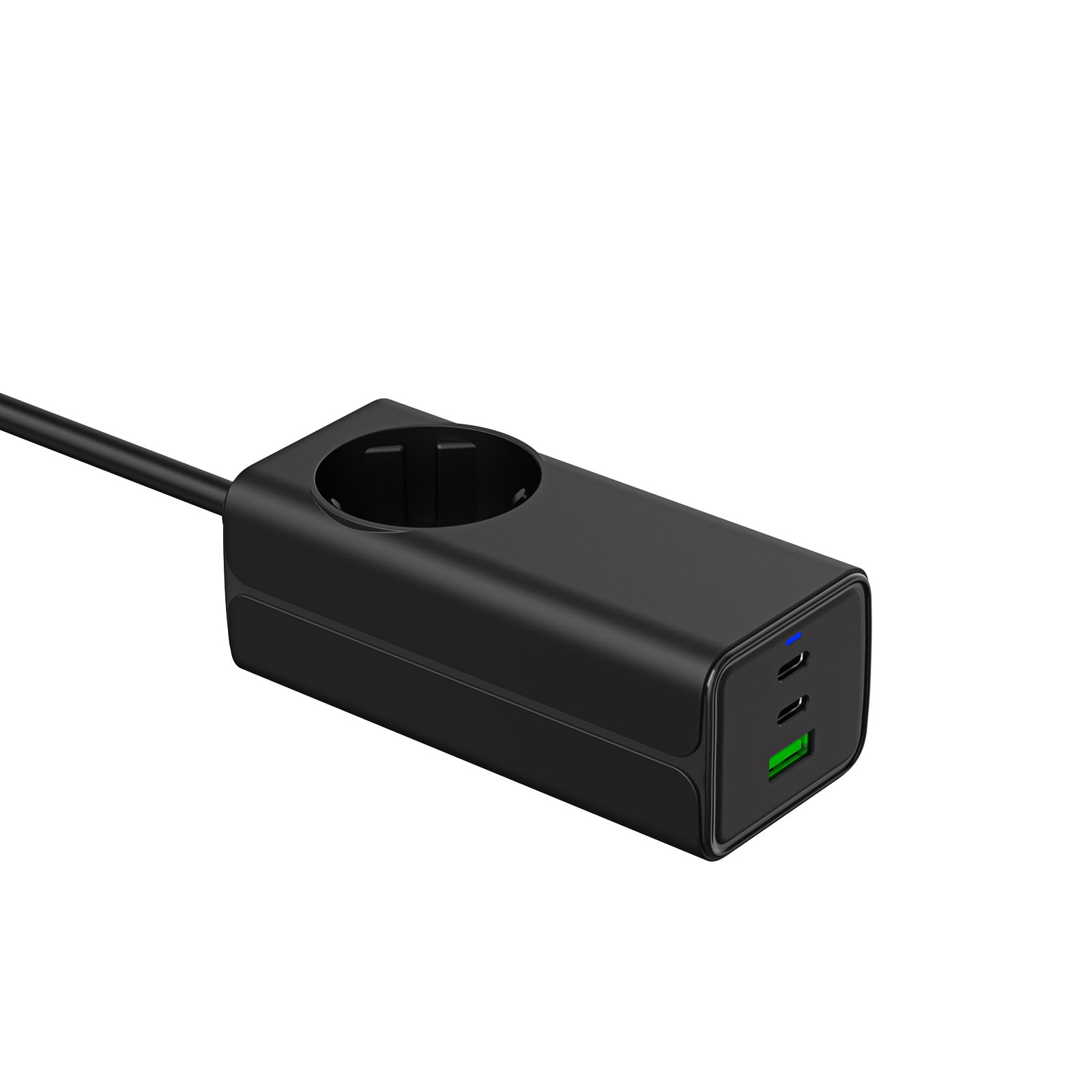

The Akyga® AK-CH-21 mains adapter combines the functions of a USB mains charger and an extension cable. It is ideal for those looking for a versatile solution for fast charging of several devices simultaneously. This charger has two USB Type-C ports and one USB-A port. The main USB-C port provides 65 W of power, which is perfect for fast charging laptops, while the second USB-C and USB-A ports each provide 30 W of power, great for phones, wireless headphones and other accessories.
What's more, the AK-CH-21 impresses with its compact size and unparalleled efficiency, thanks to the breakthrough GaN (gallium nitride) technology. This is definitely more than just a simple USB-C charger - it's a high-tech device that delivers more power than traditional chargers. In addition, the charger supports fast charging technologies such as Power Delivery and Quick Charge 3.0, as well as the Programmable Power Supply (PPS) protocol. With these, the charger offers maximum charging power and adaptive power adjustment to the needs of the connected device.
The AK-CH-21 USB charger is equipped with a universal 230 V AC socket. This feature provides extra functionality, allowing you to connect another charger or any device with a Schuko plug, making it an ideal desktop charging station.

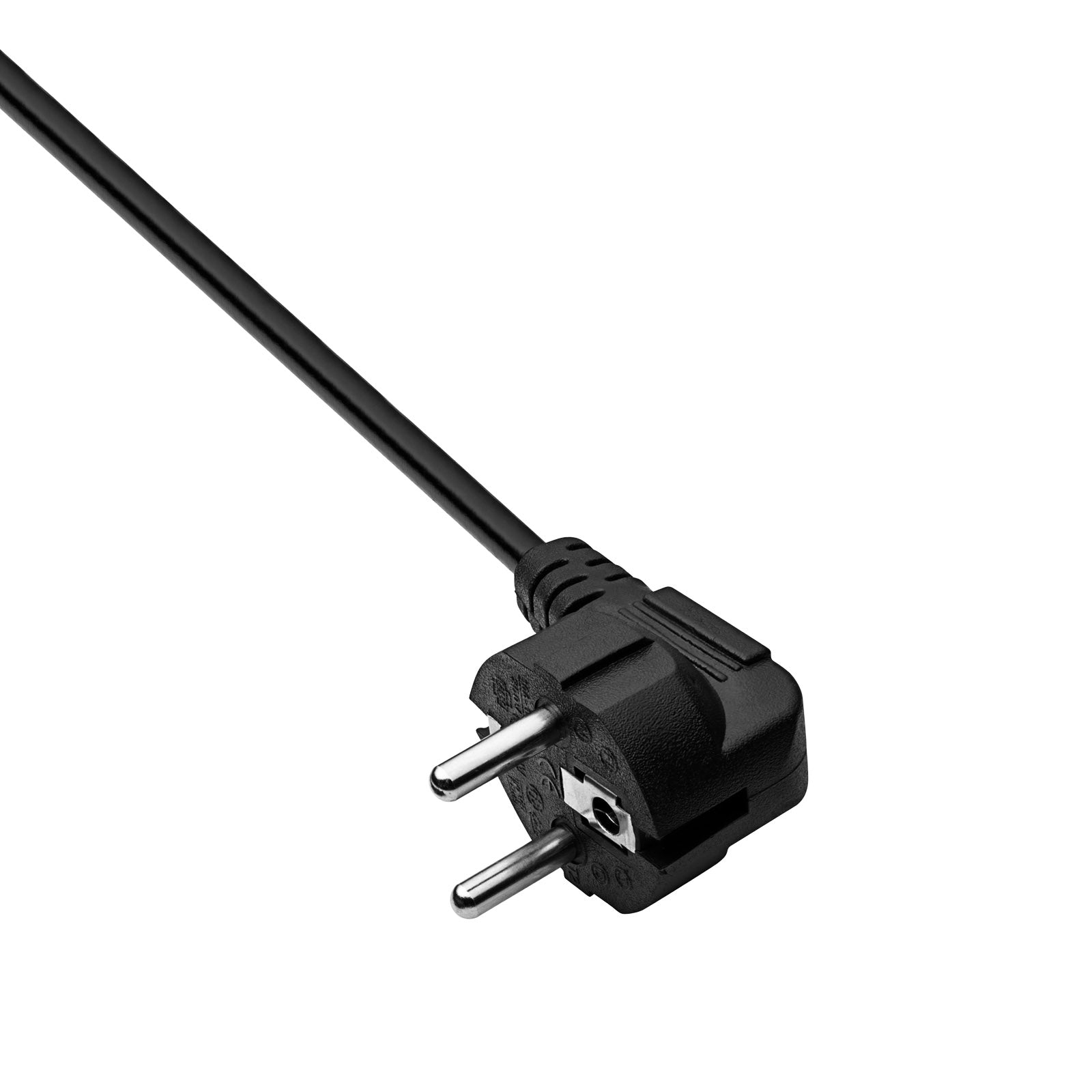

The USB-C wall charger also has a built-in 1.5 m CEE 7/7 mains cable. It can be easily connected to a socket under the desk, making it easier to maintain an aesthetic and tidy workspace. This functionality makes the AK-CH-21 an ideal device for those who value performance and the aesthetics of their desk.
