Tiandy

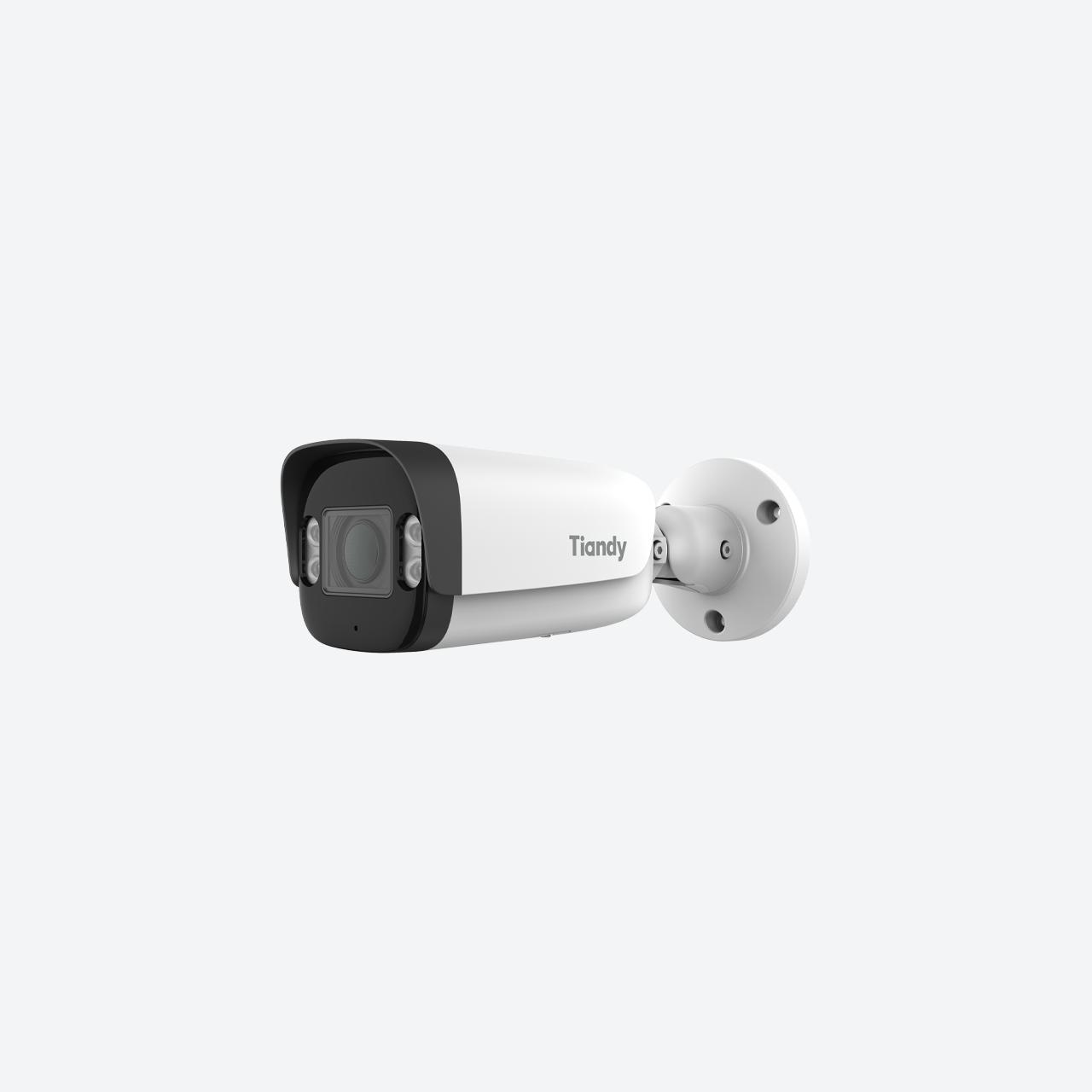

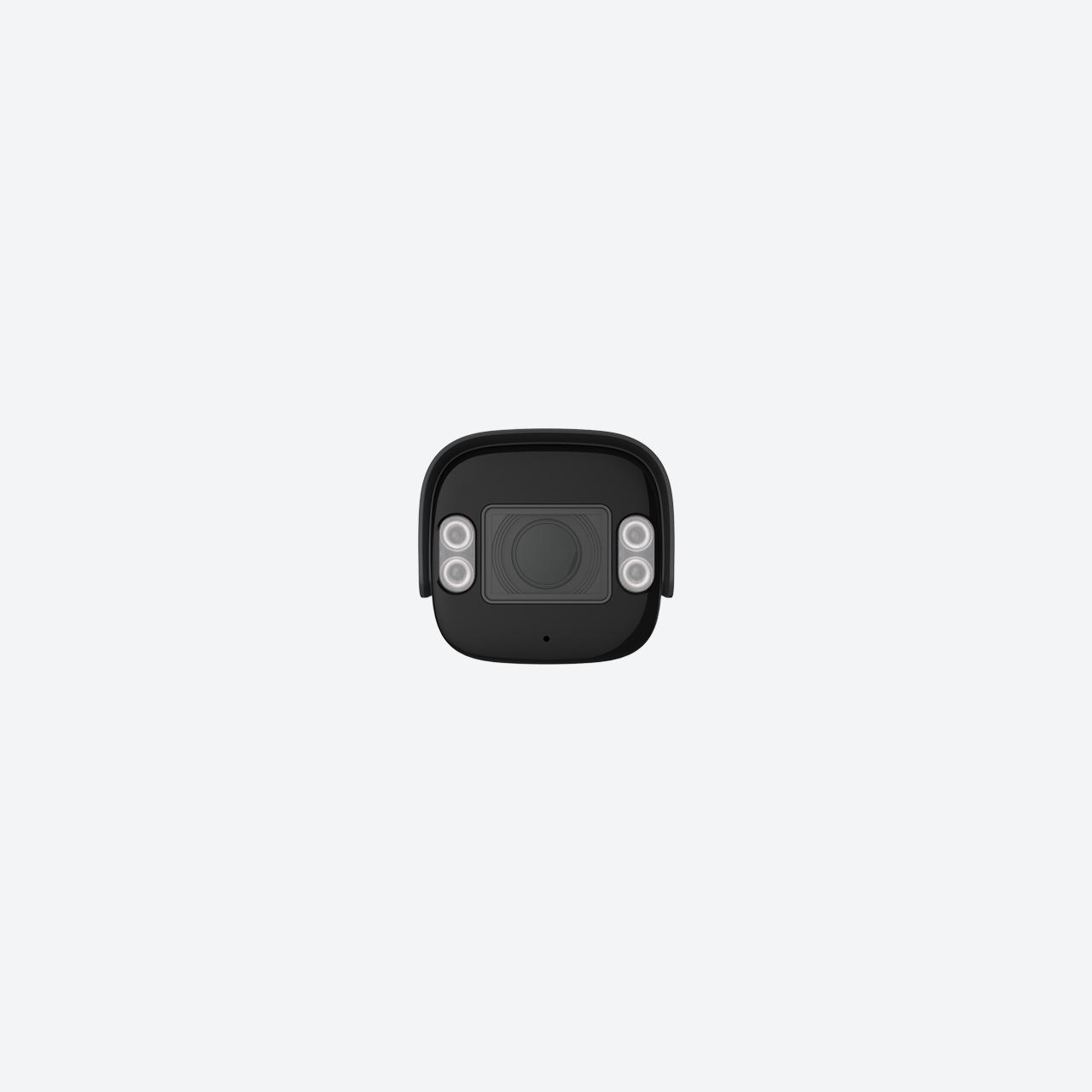

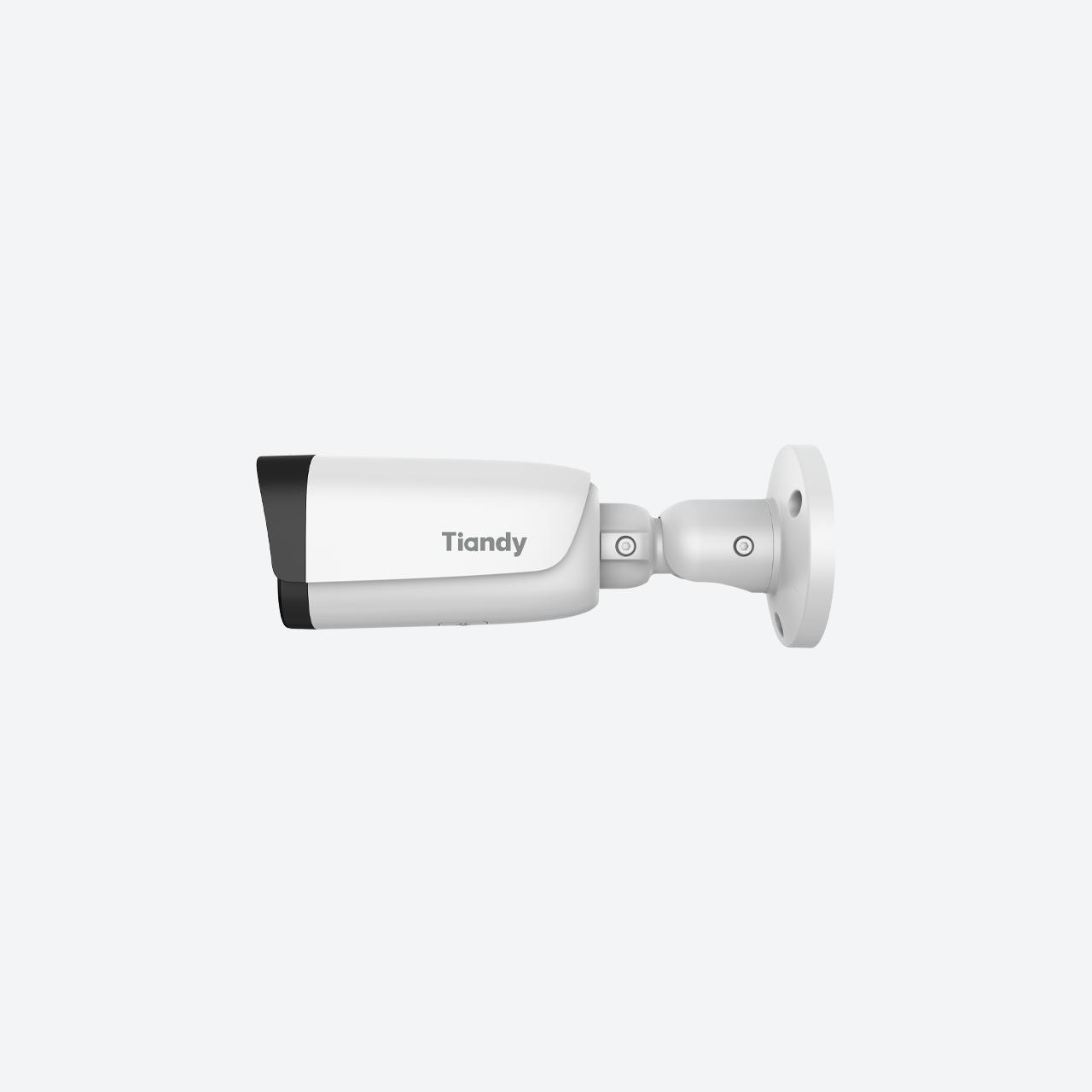

Tiandy TC-C34UV 3MRC-4 – 4 MP bullet camera (4mm, full-color, metal housing)
65.390 Ft
gross price
In stock
Delivery: 1 working day
Item number: TC-C34UV 3MRC-4
- ✓ 36-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Manufacturer | Tiandy |
| Product code | TC-C34UV 3MRC-4 |
| SKU | 1D.20010.025765 |
| Product type | IP camera |
| Image sensor | 1/1.8" CMOS |
| Max. resolution | 4 MP,2688×1520@25 fps |
| Min. illumination | Colour: 0,0001 lux (F1.0, AGC be) |
| Lens | Fixed focal lens, 4 mm |
| Field of view | 85.9°(H); 48.5°(V); 97.6°(D) |
| Night mode | White LED (full-color) |
| White light range | 15 m |
| WDR | 120 dB |
| Video compression | S+265/H.265/H.264B/H.264M/H.264H |
| Audio | 1 × built-in microphone |
| Storage | microSD, microSDHC and microSDXC card, up to 512 GB |
| Protection rating | Surge4000V; ESD6000V; IP67 |
| Power supply | DC 12 V±25%,max. 8 W; PoE:IEEE 802.3af, max. 9 W |
4 more technical details
| Operating temperature | -40 ... +65 °C |

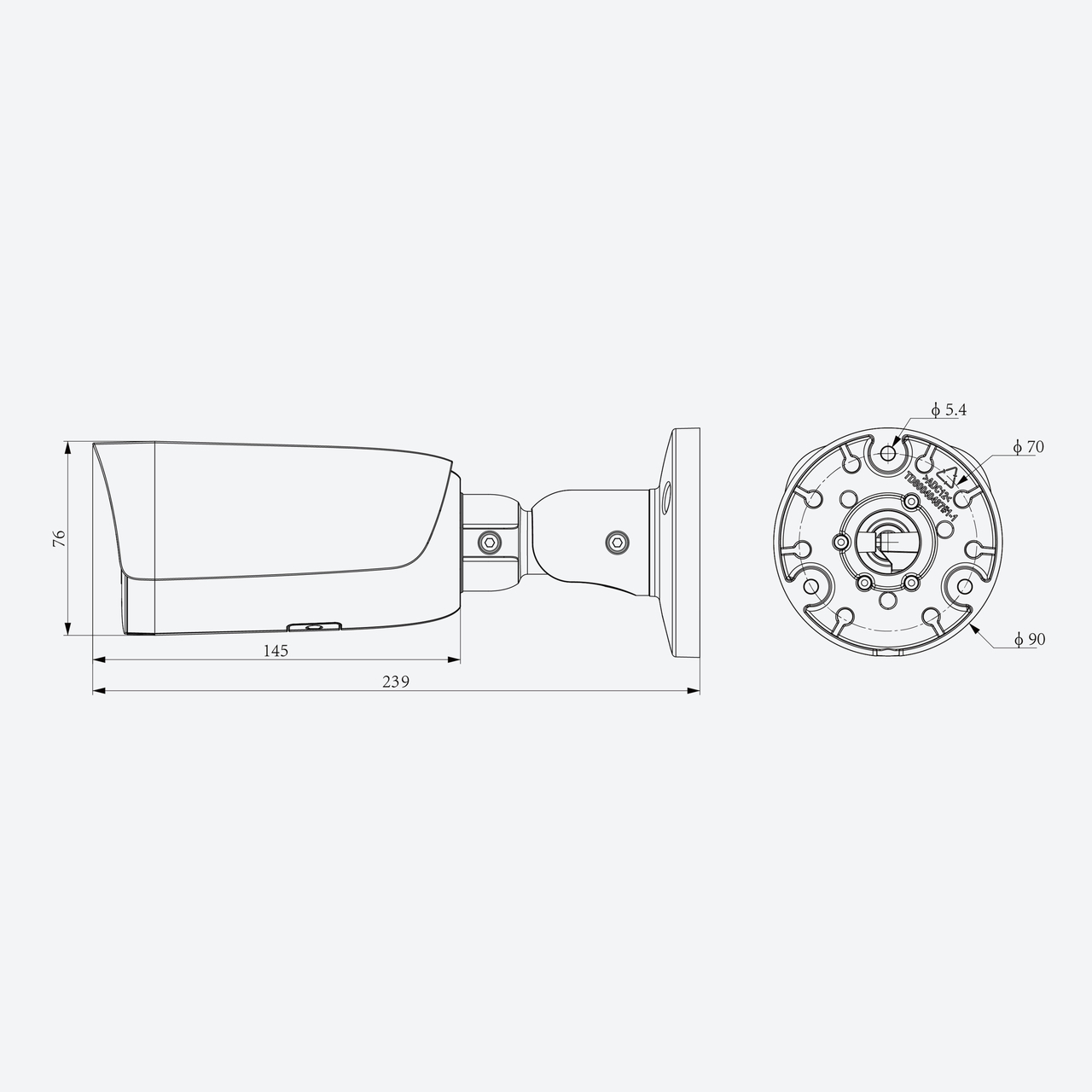

| Size | 239 × 90 × 90 mm |
| Gross weight | 1128 g |
| Warranty | 36 months |
The data shown comes from the manufacturer; illustrations may differ.
Manufacturer datasheet
| Camera | |
| Image Sensor | 1/1.8"CMOS |
| Min. Illumination | Color:0.0001Lux@(F1.0,AGC ON) |
| Shutter Time | 1s~1/100000s |
| Day&Night | Fixed IR-cut |
| WDR | 120dB |
| S/N | >46dB |
| Angle Adjustment | 0~360°(P); 0~90°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M16 |
| Aperture Range | F1.0 |
| Aperture Type | Fixed |
| Field of View | 85.9°(H); 48.5°(V); 97.6°(D) |
| DORI Distance | Detect:80m Observe:31.7m Recognize:16m Identify:8m |
| Illuminator | |
| White LEDs | 4 |
| Whitelight Distance | 15m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~6Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Image | |
| Max. Resolution | 4MP,2688×1520@25fps |
| Main Stream | PAL:25fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:24fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:24fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | 8 rectangular static areas |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64; Lattice |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| General Alarm | Motion Detection; Mask Alarm |
| Exceptions Alarm | Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Network Disconnection |
| Linkage Method | Send Email; Trigger Recording; Trigger Capture; Notify Surveillance Center |
| Video Analytics | Human/Vehicle Classification; Tripwire; Perimeter |
| Rules of Behavior Analyse In 1 Scene | 2 |
| Network | |
| ANR | Yes |
| Protocols | RTSP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; QoS; IPv4; IPv6; SSH; Unicast; Multicast; RTCP; ARP; RTP; SRTP; FTP |
| System Compatibility | ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1×Built-in Mic |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 512GB |
| RTC | Yes |
| General | |
| Web Client Language | 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
| Operating Temperature | -40℃~65℃(-40℉~149℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -40℃~65℃(-40℉~149℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC12V±25%,Max. 8W; PoE:IEEE 802.3af,Max. 9W |
| Protection | Surge4000V; ESD6000V; IP67 |
| Boundary Dimensions | 239(L)90(W)90(H)mm |
| Package Dimensions | 280(L)125(W)140(H)mm |
| GrossWeight | 1.128kg |
Description
The Tiandy TC-C34UV 3MRC-4 is an IP camera from the LK series, 4 MP, Fixed focal lens, 4 mm.
According to the manufacturer's DORI measurement it detects movement up to 80 m, observes shapes up to 31.7 m, recognises a person up to 16 m and identifies a face up to 8 m. These distances depend on mounting height and lighting.
At night the white LED reaches 15 m, so the image stays in colour.
The IP67-rated housing is built for outdoor use. Power comes from PoE (802.3af) or 12 V DC. The card slot takes a microSD up to 512 GB, and after a network outage the recorder fills in the missing footage (ANR).
Running in the camera: human and vehicle classification, tripwire, perimeter protection. A built-in microphone records audio. It works with most recorders over ONVIF; with a Tiandy NVR the full feature set is available.
