Tiandy

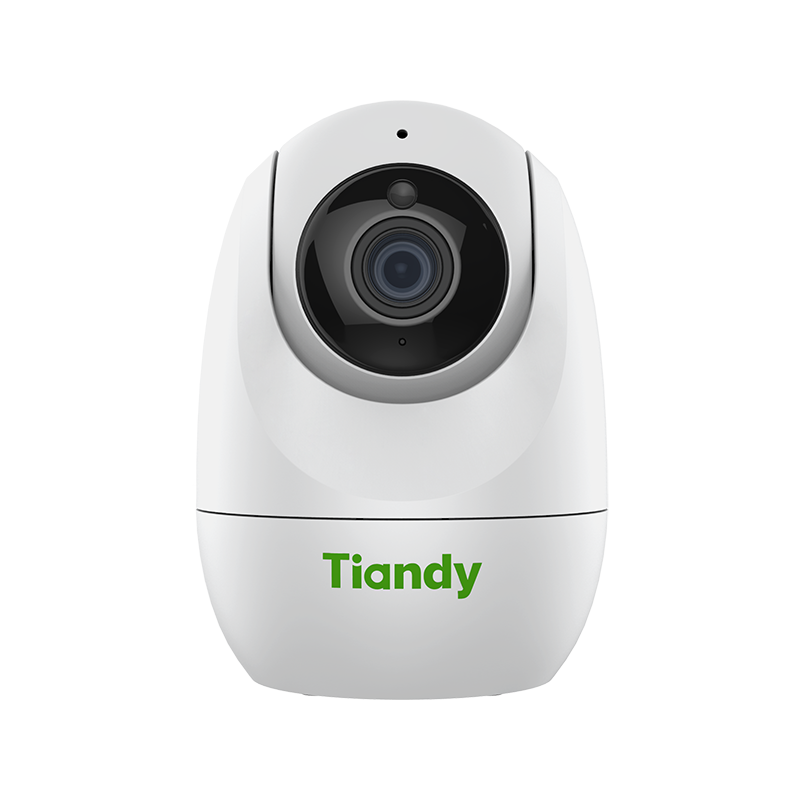

Tiandy TC-H342N 9DB-4 – 4MP IP camera (4mm)
22.990 Ft
gross price
Made to order · approx. 6 weeks
Item number: TC-H342N 9DB-4
- ✓ 36-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Manufacturer | Tiandy |
| Product code | TC-H342N 9DB-4 |
| SKU | 1D.20010.024691 |
| Product type | IP camera |
| Series | Tian homeuse |
| Image sensor | 1/3" CMOS |
| Max. resolution | 4 MP,2560×1440@20 fps |
| Min. illumination | Colour: 0,02 lux (F1.6, AGC be); B/W: 0 Lux with IR |
| Lens | Fixed focal lens, 4 mm |
| Field of view | 78.7°(H); 41°(V); 92.6°(D) |
| Night mode | IR and white LED |
| IR range | max. 15 m |
| White light range | 10 m |
| WDR | DWDR |
| Video compression | S+265/H.265/H.264B/H.264M/H.264H |
9 more technical details
| Audio | 1 × built-in microphone + 1 × built-in speaker |
| Storage | microSD, microSDHC and microSDXC card, up to 256 GB |
| Housing | Plastic |
| Protection rating | Surge500V; ESD6000V |
| Power supply | DC 5 V±5% USB type-C, Max.7W |
| Operating temperature | -10℃-45℃(14℉~113℉) |
| Size | 80 × 80 × 113 mm |
| Gross weight | 360 g |
| Warranty | 36 months |
The data shown comes from the manufacturer; illustrations may differ.
Manufacturer datasheet
| Camera | |
| Image Sensor | 1/3"CMOS |
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >38dB |
| Angle Adjustment | 0-350°(P); -25-90°(T) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 78.7°(H); 41°(V); 92.6°(D) |
| DORI Distance | Detect:80m Observe:31.75m Recognize:16m Identify:8m |
| Pan&Tilt | |
| Pan Speed | 45°/s |
| Tilt Speed | 30°/s |
| Preset | 255 |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | Up to 15m |
| Wavelength | 850nm |
| White LEDs | 1 |
| Whitelight Distance | 10m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D |
| Audio Sampling Rate | 8kHz/16kHz |
| Image | |
| Max. Resolution | 4MP,2560×1440@20fps |
| Main Stream | PAL:20fps(2560×1440,2304×1296,1920×1080,1280×720) NTSC:20fps(2560×1440,2304×1296,1920×1080,1280×720) |
| Sub Stream | PAL:20fps(704×576,704×288,352×288,640×360) NTSC:20fps(704×480,704×240,352×240,640×360) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64; Lattice |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| Exceptions Alarm | Disk Full; Disk R/W Error; IP Address Conflict |
| Linkage Method | Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
| Video Analytics | Smart Alarm |
| Auto-Tracking | Yes |
| Network | |
| Protocols | RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Wireless Parameters | |
| Wireless | Encryption Method:WPA-PSK / WPA2-PSK Wi-Fi Protocol:IEEE 802.11b/g/n Frequency Range:2.4 GHz to 2.4835 GHz Channel Bandwidth:20MHz Modulation&Transfer Rate: 802.11b (DSSS): CCK, DQPSK, DBPSK;Max 11Mps 802.11g (OFDM): BPSK, QPSK, QAM16, QAM64;Max 54Mps 802.11n (OFDM): BPSK, QPSK, QAM16, QAM64;Max 72.2Mps Wireless Range:Up to 50 m (The performance varies based on actual environment) 1 Antenna |
| Interface | |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1×Built-in Mic |
| Built-in Speaker | 1×Built-in Loudspeaker |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 256GB |
| Bluetooth Provisioning | Yes |
| General | |
| Operating Temperature | -10℃-45℃(14℉~113℉) |
| Operating Humidity | 0~95%RH(non-condensing) |
| Storage Temperature | -10℃-45℃(14℉~113℉) |
| Storage Humidity | 0~95%RH(non-condensing) |
| Power Supply | DC5V±5% USB type-C,Max.7W |
| Protection | Surge500V; ESD6000V |

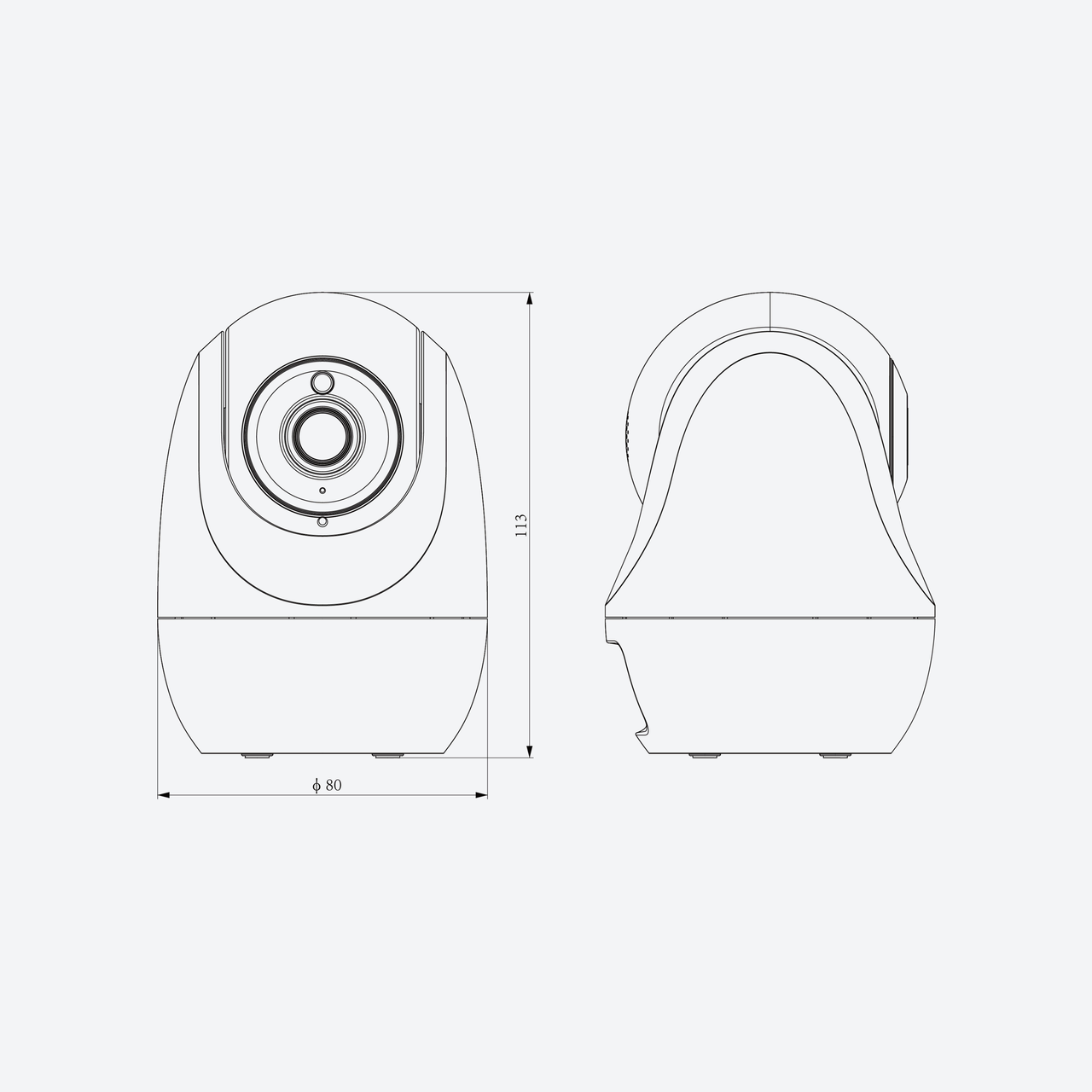

| Boundary Dimensions | 80(L)80(W)113(H)mm |
| Package Dimensions | 97(L)97(W)160(H)mm |
| GrossWeight | 0.36kg |
| NetWeight | 0.21kg |
Description
The Tiandy TC-H342N 9DB-4 is an IP camera from the Tian series, 4 MP, Fixed focal lens, 4 mm.
According to the manufacturer's DORI measurement it detects movement up to 80 m, observes shapes up to 31.75 m, recognises a person up to 16 m and identifies a face up to 8 m. These distances depend on mounting height and lighting.
In the dark the infrared illuminator reaches 15 m. The white LED gives a colour image up to 10 m, for cases where colour matters more than covert operation.
Power comes from 5 V DC. The card slot takes a microSD up to 256 GB.
A built-in microphone records audio. It works with most recorders over ONVIF; with a Tiandy NVR the full feature set is available.
