Tiandy

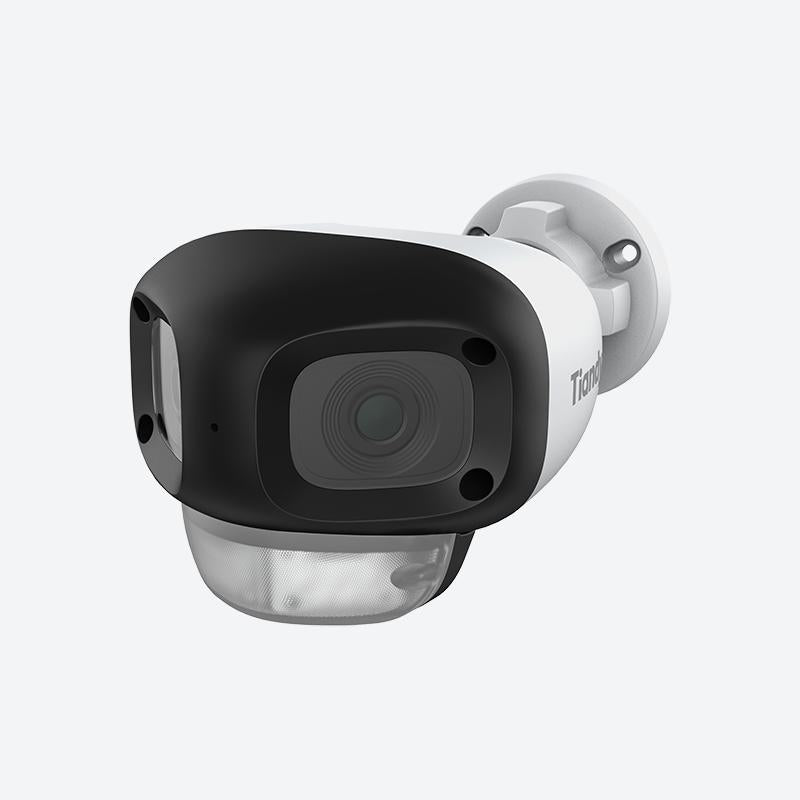

Tiandy TC-C345N 2ANA-28 – 2MP IP Camera (Dual 2.8mm Full-Color)
44.590 Ft
gross price
Made to order · approx. 6 weeks
Item number: TC-C345N 2ANA-28
- ✓ 24-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Manufacturer | Tiandy |
| Product code | TC-C345N 2ANA-28 |
| SKU | 1D.20010.024904 |
| Product type | IP camera |
| Series | SK-I Color Maker |
| Image sensor | 1/3" CMOS |
| Max. resolution | 2 MP,1920x1080@25 fps |
| Min. illumination | Colour: 0,02 lux (F1.6, AGC be); B/W: 0 Lux with IR |
| Lens | Fixed focal lens, 2,8 mm |
| Field of view | 94.9°(H); 51.8°(V); 110°(D) |
| Night mode | IR and white LED |
| IR range | max. 50 m |
| White light range | max. 30 m |
| WDR | DWDR |
| Video compression | S+265/H.265/H.264B/H.264M/H.264H |
| Audio | 1 × built-in microphone |
7 more technical details
| Housing | Plastic |
| Protection rating | Surge4000V; ESD6000V; IP67 |
| Power supply | DC 12 V±25%,max. 6,5 W; PoE:IEEE 802.3af, Max.8W |
| Operating temperature | -30 ... +60 °C |
| Size | 193 × 114 × 90 mm |
| Gross weight | 494 g |
| Warranty | 24 months |
The data shown comes from the manufacturer; illustrations may differ.
Manufacturer datasheet
| Camera | |
| Image Sensor | 1/3"CMOS |
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s-1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | ≥52dB |
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 94.9°(H); 51.8°(V); 110°(D) |
| DORI Distance | Detect:57.1m Observe:22.6m Recognize:11.4m Identify:5.7m |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | Up to 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | Up to 30m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
| Image | |
| Max. Resolution | 2MP,1920x1080@25fps |
| Main Stream | PAL:25fps(1920x1080) |
| Sub Stream | PAL:25fps(704x576) |
| BLC | Yes |
| HLC | HLC |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters; 16*16/32*32/48*48/adaptive; Lattice |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| General Alarm | Smart Alarm(human and vehicle detection) |
| Exceptions Alarm | IP Address Conflict |
| Linkage Method | Trigger Capture |
| Network | |
| Protocols | RTSP; HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast; Multicast |
| System Compatibility | P2P(Mutually exclusive with Profile G); onvif Profile S/T; SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Chrome57+ |
| Interface | |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1×Built-in Mic |
| General | |
| Web Client Language | 12 languages English/Spanish/Italian/Turkish/Russian/Thai/French/Polish/Arabic/Vietnamese/Portuguese/Japanese |
| Operating Temperature | -30℃~60℃(-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃(-22℉~140℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC12V±25%,Max. 6.5W; PoE:IEEE 802.3af,Max.8W |
| Protection | Surge4000V; ESD6000V; IP67 |
| Boundary Dimensions | 193(L)114(W)90(H)mm |
| Package Dimensions | 245(L)140(W)130(H)mm |
| GrossWeight | 0.494kg |
Description
The Tiandy TC-C345N 2ANA-28 is an IP camera from the SK series, 2 MP, Fixed focal lens, 2.8 mm.
According to the manufacturer's DORI measurement it detects movement up to 57.1 m, observes shapes up to 22.6 m, recognises a person up to 11.4 m and identifies a face up to 5.7 m. These distances depend on mounting height and lighting.
In the dark the infrared illuminator reaches 50 m. The white LED gives a colour image up to 30 m, for cases where colour matters more than covert operation.
The IP67-rated housing is built for outdoor use. Power comes from PoE (802.3af) or 12 V DC.
A built-in microphone records audio. It works with most recorders over ONVIF; with a Tiandy NVR the full feature set is available.
