Tiandy

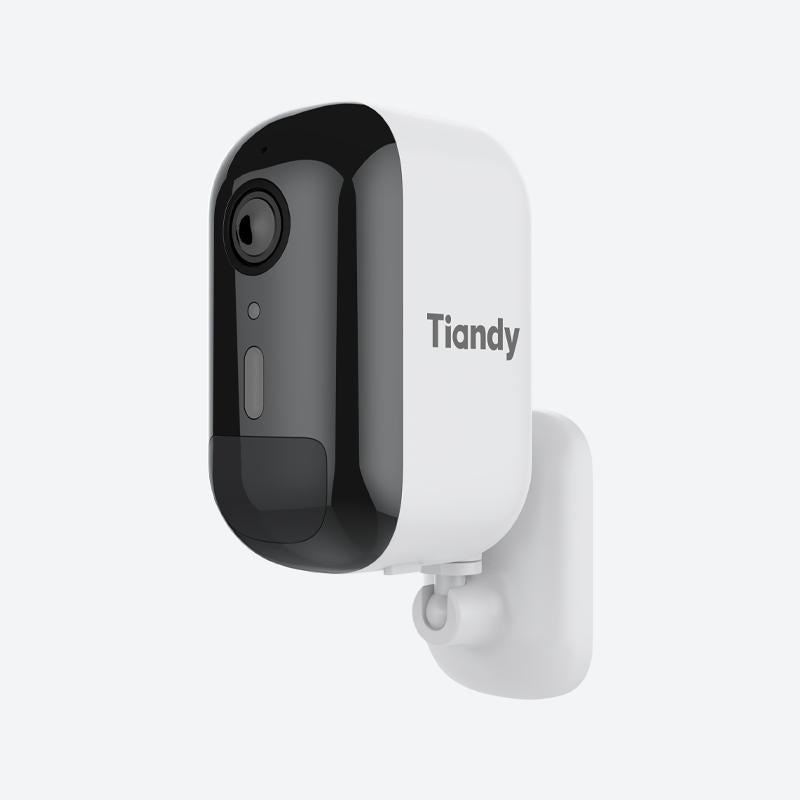

Tiandy TC-C34CN 9ATA-28 – 2MP IP camera (2.8mm)
56.790 Ft
gross price
Made to order · approx. 6 weeks
Item number: TC-C34CN 9ATA-28
- ✓ 36-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Manufacturer | Tiandy |
| Product code | TC-C34CN 9ATA-28 |
| SKU | 1D.20010.024524 |
| Product type | IP camera |
| Series | Tian Battery |
| Image sensor | 1/2.8" CMOS |
| Max. resolution | 4 MP,2560x1440@20 fps |
| Min. illumination | Colour: 0,02 lux (F1.6, AGC be); B/W: 0 Lux with IR |
| Lens | Fixed focal lens, 2,8 mm |
| Field of view | 103.8°(H); 56.8°(V); 120.4°(D) |
| Night mode | IR and white LED |
| IR range | max. 30 m |
| White light range | 20 m |
| WDR | DWDR |
| Video compression | S+265/H265 |
| Audio | 1 × built-in microphone + 1 × built-in speaker |
7 more technical details
| Storage | microSD, microSDHC and microSDXC card, up to 256 GB |
| Housing | Plastic |
| Protection rating | ESD6000V; IP65 |
| Power supply | DC 5 V, USB type-C, max. 10 W |
| Operating temperature | -10 ... +50 °C |
| Gross weight | 380 g |
| Warranty | 36 months |
The data shown comes from the manufacturer; illustrations may differ.
Manufacturer datasheet
| Camera | |
| Image Sensor | 1/2.8"CMOS |
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | Yes |
| Angle Adjustment | 0~360°(P); 0~75°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 103.8°(H); 56.8°(V); 120.4°(D) |
| DORI Distance | Detect:40.0m Observe:15.87m Recognize:8.0m Identify:4.0m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | 20m |
| Compression Standard | |
| Video Compression | S+265/H265 |
| Video Bit Rate | 32k~2Mbps |
| Audio Compression | G.711A |
| Audio Sampling Rate | 16kHz |
| Image | |
| Max. Resolution | 4MP,2560x1440@20fps |
| Main Stream | PAL:20fps(2560x1440） NTSC:20fps(2560x1440） |
| Sub Stream | PAL:20fps(640x360) NTSC:20fps(640x360) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto |
| OSD | 16*16/32*32/48*48/64*64; Lattice |
| Feature | |
| Exceptions Alarm | Disk Full; Disk R/W Error |
| Linkage Method | Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
| Video Analytics | Smart Alarm |
| Network | |
| Protocols | TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
| System Compatibility | SDK |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Wireless Parameters | |
| Wireless | Encryption Method:WPA-PSK / WPA2-PSK Wi-Fi Protocol:IEEE 802.11b/g/n Frequency Range:2.4 GHz to 2.4835 GHz Channel Bandwidth:20MHz Modulation&Transfer Rate: 802.11b (DSSS): CCK, DQPSK, DBPSK;Max 11Mps 802.11g (OFDM): BPSK, QPSK, QAM16, QAM64;Max 54Mps 802.11n (OFDM): BPSK, QPSK, QAM16, QAM64;Max 72.2Mps Wireless Range:Up to 30 m (The performance varies based on actual environment) 1 Antenna |
| Low-Power Consumption & Battery Life | |
| Battery Specifications | Battery Type:Lithium Battery Voltage:DC 2.8 V to DC 4.2 V Capacity:5200 mAh (3.7 V) Max. Output Voltage:4.2 V Operating Temperature: Charging: -5℃ to 45℃ Discharging: -20℃to 55℃ Battery Life:Cap(800th)≥80% |
| Low-Power Consumption | Low-power mode:Super power-saving mode,Intelligen sleep mode,Constant power mode Laboratory Data: Super power-saving mode: 90 days Intelligen sleep mode: 6 minutes of operation per day: 45 days (18 seconds per trigger, 20 triggers per day) Constant Power Mode: 15 hours |
| Interface | |
| Built-in Mic | 1×Built-in Mic |
| Built-in Speaker | 1×Built-in Loudspeaker |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 256GB |
| RTC | Yes |
| General | |
| Operating Temperature | -10℃~50℃(14℉~122℉) |
| Operating Humidity | 0~95%RH(non-condensing) |
| Storage Temperature | -10℃~50℃(14℉~122℉) |
| Storage Humidity | 0~95%RH(non-condensing) |
| Power Supply | DC5V,USB type-C,Max. 10W |
| Protection | ESD6000V; IP65 |

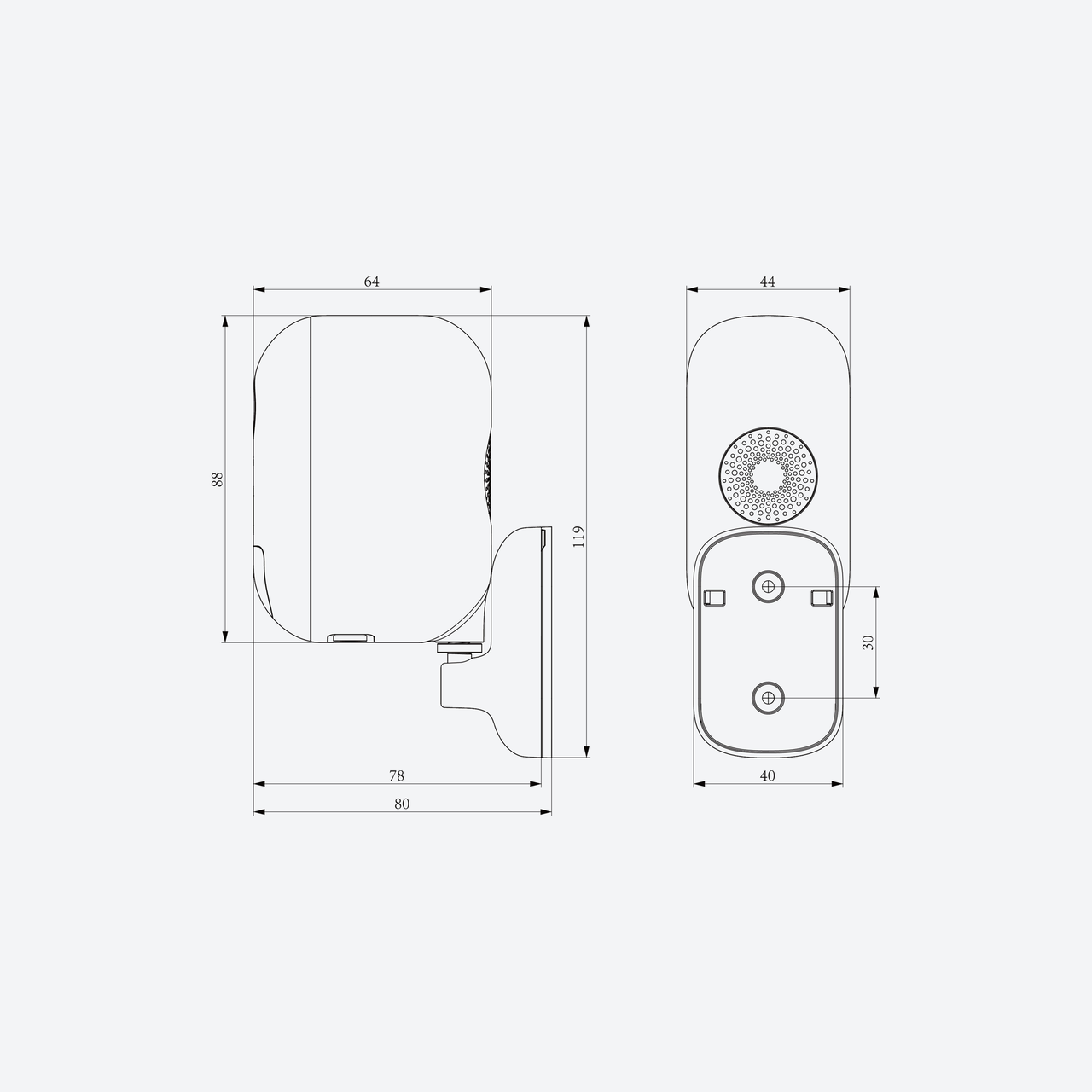

| Boundary Dimensions | 78(L)44W)73(H)mm |
| Package Dimensions | 146(L)83(W)108(H)mm |
| GrossWeight | 0.38kg |
| NetWeight | 0.24kg |
Description
The Tiandy TC-C34CN 9ATA-28 is an IP camera from the Tian series, 4 MP, Fixed focal lens, 2.8 mm.
According to the manufacturer's DORI measurement it detects movement up to 40.0 m, observes shapes up to 15.87 m, recognises a person up to 8.0 m and identifies a face up to 4.0 m. These distances depend on mounting height and lighting.
In the dark the infrared illuminator reaches 30 m. The white LED gives a colour image up to 20 m, for cases where colour matters more than covert operation.
The IP65-rated housing is built for outdoor use. Power comes from 5 V DC. The card slot takes a microSD up to 256 GB.
A built-in microphone records audio. It works with most recorders over ONVIF; with a Tiandy NVR the full feature set is available.
