Tiandy TC-R3240 – 40-channel NVR recorder
192.590 Ft
gross price
Made to order · approx. 6 weeks
Item number: TC-R3240 Spec:I/B/N/H/V4.1
- ✓ 36-month warranty
- ✓ Fast delivery nationwide
- ✓ 14-day right of withdrawal
Notify me (stock or price drop)
Specifications
| Manufacturer | Tiandy |
| Product code | TC-R3240 Spec:I/B/N/H/V4.1 |
| SKU | 1D.20030.021616 |
| Product type | Network video recorder (NVR) |
| Channels | 40 csatorna |
| Hard drive bays | 2 × SATA interface |
| HDD capacity | Up to 10 TB per HDD |
| Bandwidth (in/out) | 400 Mbps / 400 Mbps |
| Decoding capability | 16 MP(30 fps)×2, 12 MP(30 fps)×3, 8 MP(30 fps)×5, 6 MP(30 fps)×6, 5 MP(30 fps)×8, 4 MP(30 fps)×10, 3 MP(30 fps)×13, 1080P(30 fps)×20, 720P(30 fps)×40, 4CIF(30 fps)×40 |
| Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
10 more technical details
| Video output | HDMI, VGA |
| Network | 2 × RJ-45, 10/100/1000 Mbit automatikus Ethernet port |
| USB | 1×USB2.0; 1×USB3.0 |
| Compatibility | ONVIF; Tiandy IP cameras |
| Power supply | DC 12 V |
| Consumption | <15 W(HDD not included, idling) |
| Operating temperature | -10 ... +55 °C |
| Size | 440 × 284 × 48 mm |
| Gross weight | 3850 g |
| Warranty | 36 months |
The data shown comes from the manufacturer; illustrations may differ.
Manufacturer datasheet
| Video and Audio | |
| Access Channel | 40 |
| Incoming Bandwidth | 400Mbps |
| Outgoing Bandwidth | 400Mbps |
| Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Decoding Capability | 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×5, 6MP(30fps)×6, 5MP(30fps)×8, 4MP(30fps)×10, 3MP(30fps)×13, 1080P(30fps)×20, 720P(30fps)×40, 4CIF(30fps)×40 |
| Playback Decoding Capability | 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×5, 6MP(30fps)×6, 5MP(30fps)×8, 4MP(30fps)×10, 3MP(30fps)×13, 1080P(30fps)×16, 720P(30fps)×16, 4CIF(30fps)×16 |
| Third-party Camera Access | ONVIF(Profile S/T); RTSP |
| HDMI Output | HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K)3840×2160(30Hz/60Hz) |
| VGA Output | VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz) |
| Multi-screen Display | Independent Output: HDMI: 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 VGA: 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 |
| Audio Input | 1-ch, 3.5mm |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, 3.5mm, using the audio input |
| Compression Standard | |
| Video Compression | S+265; H.265; S+264; H.264 |
| Audio Compression | G.711A; G.711U; AAC; ADPCM_D |
| Stream Type | Video; Video & Audio |
| Network | |
| Network Protocol | 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP |
| Mobile Client | EasyLive Plus (Android, iOS) |
| System Compatibility | ONVIF(Profile S/T/G); RTSP; CGI; SDK; P2P |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Recording Playback | |
| Multi-channel Playback | 16 |
| Record Mode | Manual Recording; Alarm Recording; Schedule Recording |
| Storage Method | Local HDD |
| Backup | USB storage device, Network |
| Playback Function | Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay |
| Dual Stream Record | Yes |
| Alarm | |
| General Alarm | Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR) |
| Exceptions Alarm | Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload |
| Intelligent Analytics | |
| AI by Camera | Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Heatmap; Loitering; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Safety Helmet Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Alarm; Face Recognition; Human/Vehicle Classification; LPR |
| VCA Search | Early-warning Search; Behavior Search; Safety Helmet Search; Thermographic Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search(Search by face attributes/event); Human Search(Search by human attributes) |
| VCA Report | Heatmap; People Counting; Face Statistics |
| Face Detection | |
| Face Attributes Search | Gender; Age; Glasses; Face Mask; Body Temp. |
| Face Recognition | |
| Face Picture Library | Up to 300 face libraries Up to 100000 base images |
| Face Picture Comparison | Yes (Cooperate with facial recognition IPC) |
| Video Structuralization | |
| Human Attributes Search | Gender; Age; Backpack; Face Mask; Glasses; Hair; Carrying Status; Top Color; Bottom Color; Top Type; Bottom Type; Riding Status |
| Storage | |
| HDD Capacity | Up to 10 TB capacity for each HDD |
| Disk Group | 2 Disk Group |

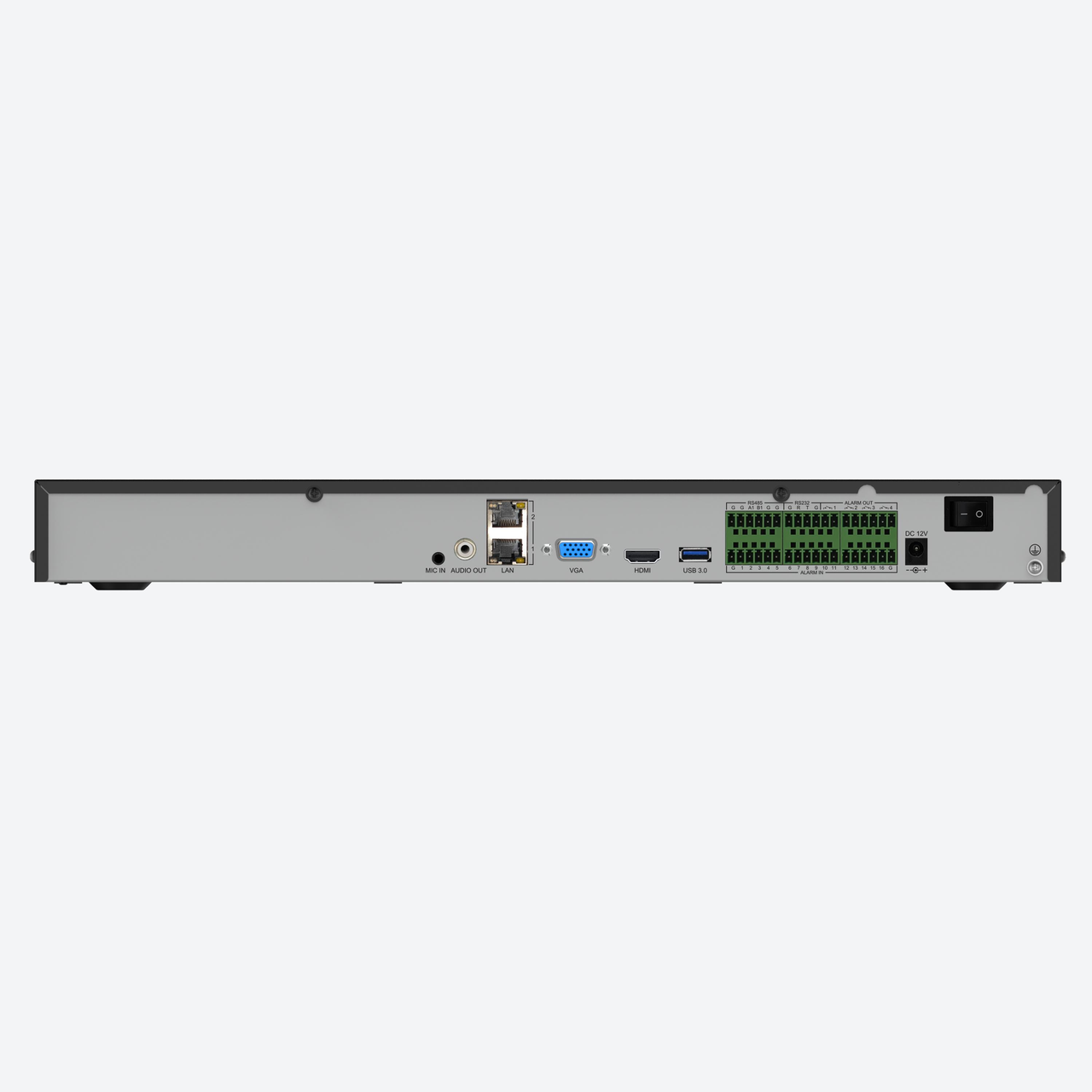

| External Port | |
| USB | 1×USB2.0; 1×USB3.0 |
| HDMI | 1×HDMI(supports up to 4K resolution output) |
| VGA | 1×VGA |
| Network Interface | 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| SATA | 2×SATA interface |
| RS-232 | 1×RS-232 |
| RS-485 | 1×RS-485 |
| Alarm I/O | 16-ch, TTL inputs, 3mA, 3.3VDC; 4-ch, relay outputs, 1A, 24VDC |
| General | |
| UI Language | Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian; Indonesian; Greek |
| Power Supply | DC12V |
| Power Consumption | <15W(HDD not included, idling) |
| NetWeight | 2.25Kg |
| GrossWeight | 3.85Kg |

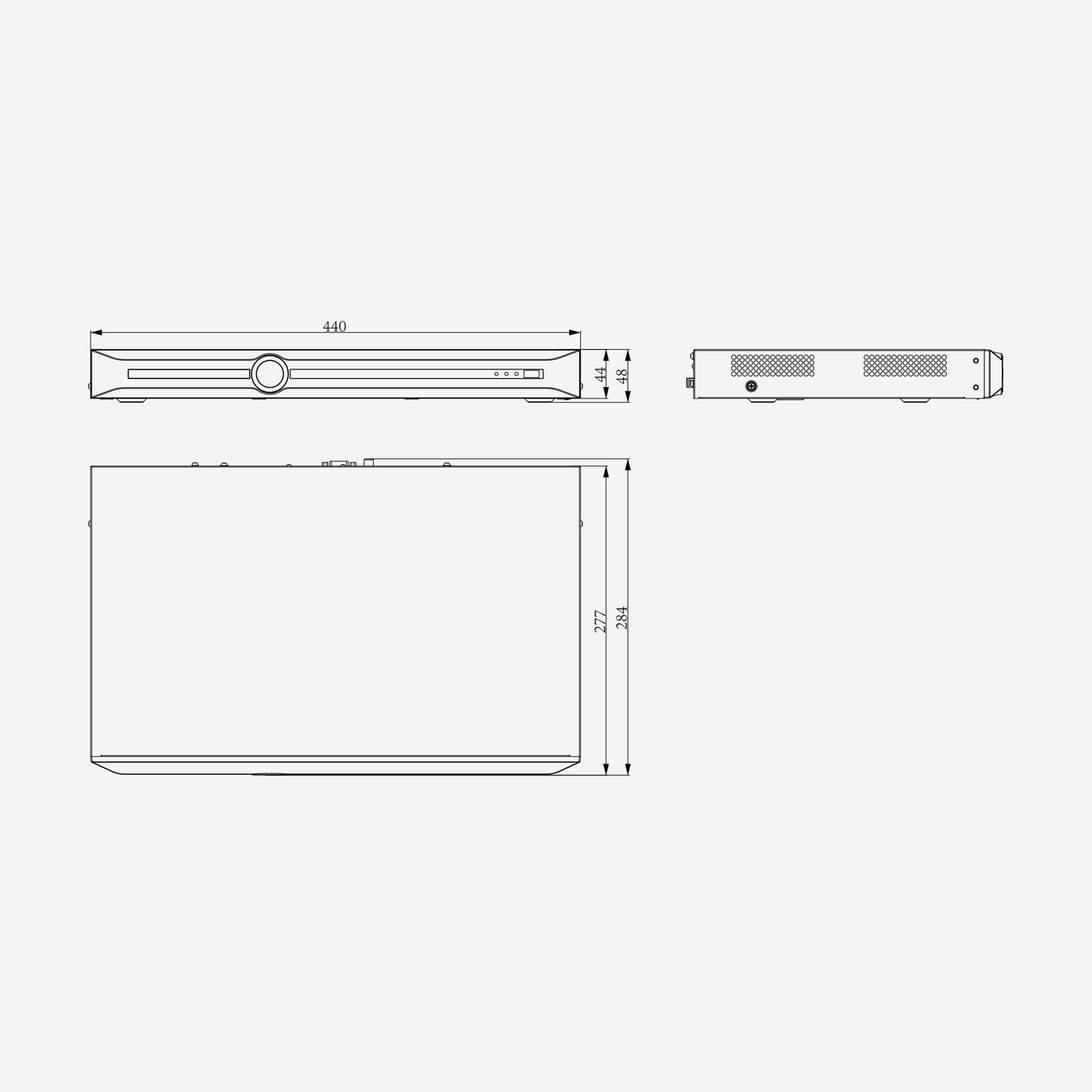

| Boundary Dimensions | 440(L)284(W)48(H)mm |
| Package Dimensions | 510(L)150(W)385(H)mm |
| Operating Temperature | -10℃~+55℃ (+14℉~+131℉) |
| Operating Humidity | 10%~90%RH (non-condensing) |
| Storage Temperature | -20℃~+60℃ (-4℉~+140℉) |
| Package Kit | Network Video Recorder*1; Screw Pack*2; Mouse*1; Power Adapter(DC12V 3.33A)*1; European Standard Power Cord*1; Ear Plate*2; SATA Hard Disk Data Cable*2; SATA Power Cord*1; Instructions*1; Parts List*1 |
Description
The Tiandy TC-R3240 Spec:I/B/N/H/V4.1 is a network video recorder (NVR) with 40 channels and 2 drive bays.
Incoming bandwidth is 400 Mbps.
Up to 10 TB per drive, so 20 TB raw capacity with 2 disks. Drives are not included.
HDMI and VGA output for local display.
Third-party cameras can be added over ONVIF.
